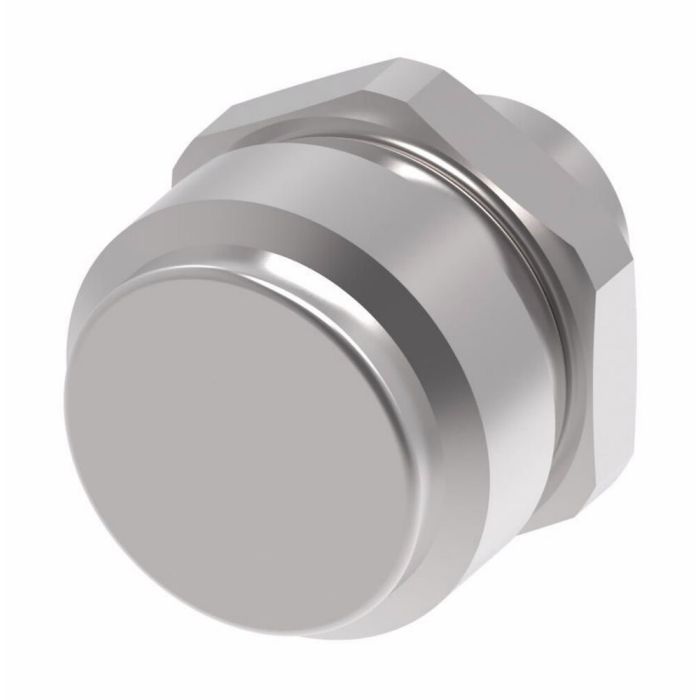

FD14 Series Oil Drain Coupling, Male Half, 1-1/8-12 UNF-2A Thread

A 1.54	B 0.96	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Type 1 UNF	Rated Flow 0.68	Rated Flow 0.68	Seal Part if Included 22046-110	Supplier Part Number FD14-4002-14-06	Thread 1 1-1/8-12 UNF-2A	Thread Sealant No	Torque Rating 30-60 lb-ft	Torque Rating 30-60 lb-ft	Alternate Part Numbers Alternate Part Number C1EK87, Alternate Part Number MI-06169068, Alternate Part Number MINO-00015F18329	Product Weight 0.38 lbs

Product Questions & Answers 1

Product Questions & Answers

got a port that’s 1-1/8-12 UNF, is this the right male half and what’s it seal with

Question by: Larry S on Sep 13, 2025, 11:56 AM

The male half on this FD14 coupling is threaded 1-1/8-12 UNF-2A. It seals to the port face using a copper-crush gasket, and the standard seal material on the plug (male half) itself is FKM.

Answer by: Customer Support on Sep 15, 2025, 6:23 AM

Similar Products

Model Number	Thread 1	Torque Rating	Rated Flow	A	B
FD14-4002-02-06	M18 x 1.5 6g	20-40 lb-ft	0.24	1.52	0.96
FD14-4002-14-06	1-1/8-12 UNF-2A	30-60 lb-ft	0.68	1.54	0.96
FD14-4002-17-06	M25 x 1.5 6g	30-60 lb-ft	0.68	1.54	0.96
FD14-4002-18-06	M22 x 1.5 6g	30-60 lb-ft	0.68	1.54	0.96
