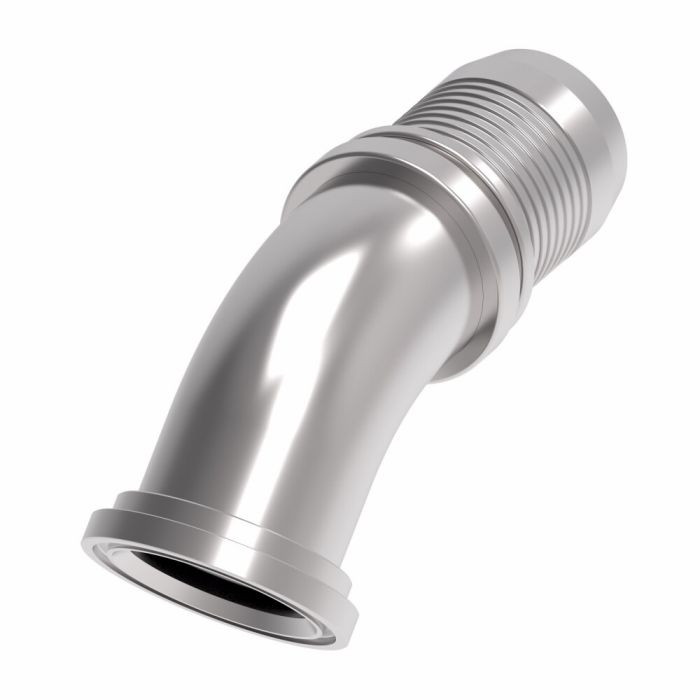

Danfoss / Eaton Aeroquip FC8155-4040S Ftng (perm), 61-flange Steel Compatible Hose ID Flange FC8155-4040S

Specifications

Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -40	ICC Hose Fittings	Item Type Nipple Assembly	Language English	Product Material Carbon Steel	Product Width 3.31	Sub Brand Aeroquip	Supplier Part Number FC8155-4040S	Product Weight 2.44 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a tight routing situation on a large-bore hydraulic line and a straight fitting just ain't gonna cut it. This the one with the 45-degree elbow, or am I lookin at the wrong part?

Question by: Randy A on May 1, 2025, 11:48 AM

Yeah, the FC8155-4040S does have a 45-degree elbow configuration, so it's built exactly for those situations where you can't run a straight line and need to work around tight clearances or nearby components. One end is a SAE Code 61 flange connection and the other mates to your line, hose, or tube. It's a permanent crimp fitting, so once it's on, it's on, but that's what gives you the reliable seal you need in high-pressure systems.

Answer by: Customer Support on May 2, 2025, 1:16 PM

Wondering if this Aeroquip fitting will hold up with some of the heavier hydraulic oils we use?

Question by: Pete B on Dec 11, 2025, 5:12 PM

Dura-Kote plating gives this fitting good corrosion resistance, which should help it hold up well even when exposed to the harsher chemicals common in hydraulic systems.

Answer by: Customer Support on Dec 13, 2025, 9:27 AM
