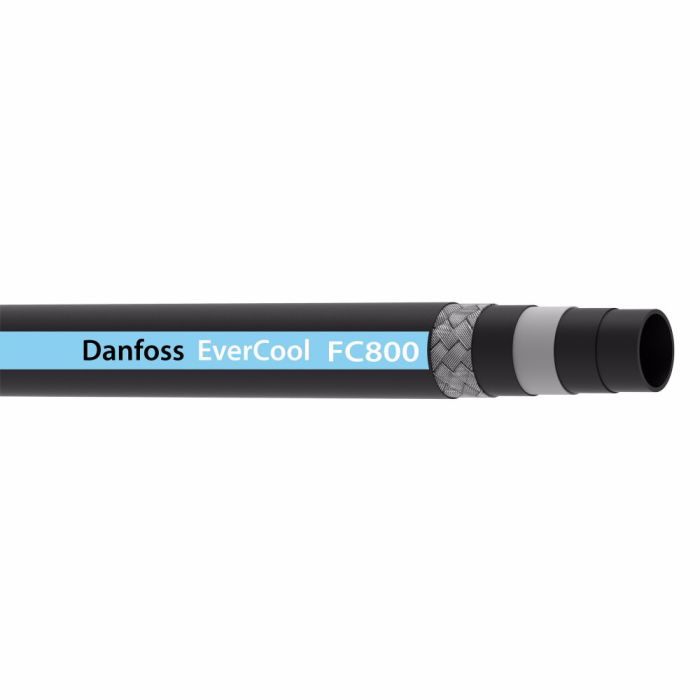

Aeroquip MULTI / REFRIG Hose FC800-20

Specifications

Abrasion Resistance 29	Application Air conditioning and refrigeration, bus and rail AC.	Certifications SAE J2064	Color Black	Conductivity 30	Construction 1 Ply Braid	Cover Material EPDM	Dash Size -20	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Effusion Rate R1234yf Effusion: 0.5 kg/m²/yr at 80°C	Features Deliver performance and maximum uptime\|Hoses exceed SAE J2064\|Compatible with multiple refrigerants	ICC Hoses and Flexible Tubes	Impulse Cycle Life 150000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 4	Minimum Bend Radius 4	Minimum Working Temperature -40	Product Width 1.52	Qualified Hose Fittings EJ5305, EJ5361, EJ5362, EJ5306, EJ5359, EJ5360, GA25126, GA25127, GA25128 or Factory crimped	Reinforcement Material Wire	Sub Brand None	Supplier Part Number FC800-20	Tube Material Chloroprene	Product Weight 1.81 lbs

Product Questions & Answers 2

Product Questions & Answers

got a bus AC line to redo, is this hose actually meant for that kind of work

Question by: Ronnie P on Nov 18, 2025, 2:59 PM

For bus and rail air conditioning and refrigeration service, this Aeroquip hose is a match. It is built for AC and refrigeration applications and it is listed as compatible with multiple refrigerants, with a conductive chloroprene tube and a black EPDM cover for abrasion resistance.

Answer by: Customer Support on Nov 19, 2025, 6:44 PM

hose is rated down to -40 degrees, but what's the highest temp it can handle during normal AC operation, and does the cover hold up to engine bay heat?

Question by: Joyce M on Sep 20, 2025, 3:04 PM

The minimum working temperature listed for this hose is -40 degrees, which covers cold start and winter conditions well. On the upper end, the effusion rate spec is measured at 80 degrees Celsius, which gives you a reasonable indicator of where the hose has been validated for performance. The black EPDM cover provides standard abrasion resistance, so it handles typical under-hood and engine bay exposure without issues.

Answer by: Customer Support on Sep 22, 2025, 6:23 AM
