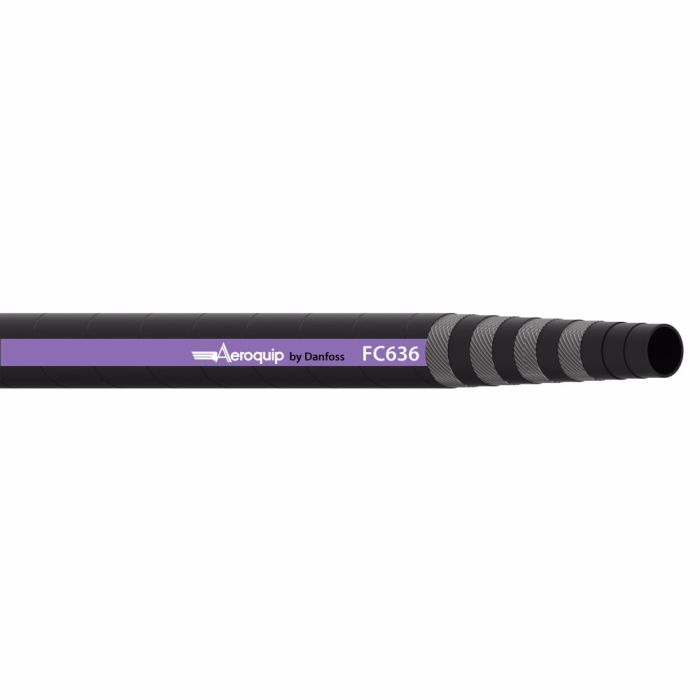

Aeroquip EPDM 4 Wire Hose

Abrasion Resistance
29
Application
Ground support equipment, industrial phosphate ester based fluids, water-glycol systems.
Certifications
SAE 100R12
Color
Green
Conductivity
30
Construction
4 Spiral
Cover Material
EPDM
Dash Size
-24
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Features
Maximum durability under harsh operating conditions|Robust construction able to withstand highest pressures|System engineered to extend hose assembly life
ICC
Hoses and Flexible Tubes
Language
English
Lay Line Style
Embossed
Minimum Bend Radius
20
Minimum Bend Radius
20
Minimum Working Temperature
-40
Product Width
2.12
Qualified Hose Fittings
4S
Reinforcement Material
Wire
Sub Brand
Aeroquip
Supplier Part Number
FC636-24
Tube Material
EPDM
Product Weight
5.68 lbs

Product Questions & Answers

Got a ground support application running phosphate ester fluid and the standard hose covers keep breaking down on us. this one rated for that kind of service?
Question by: Travis C on Feb 11, 2026, 8:21 PM
Phosphate ester compatibility is exactly what the EPDM tube and cover on this hose are built around. Standard synthetic rubber compounds tend to degrade fast in phosphate ester environments, which is why the FC636-24 uses EPDM throughout both the inner tube and outer cover. The four-spiral wire reinforcement keeps it structurally sound under high working pressure, and the conductive construction handles static dissipation requirements that come up in those kinds of circuits. Ground support equipment is one of the listed applications, so it fits your use case well.
Answer by: Customer Support on Feb 13, 2026, 10:47 AM
