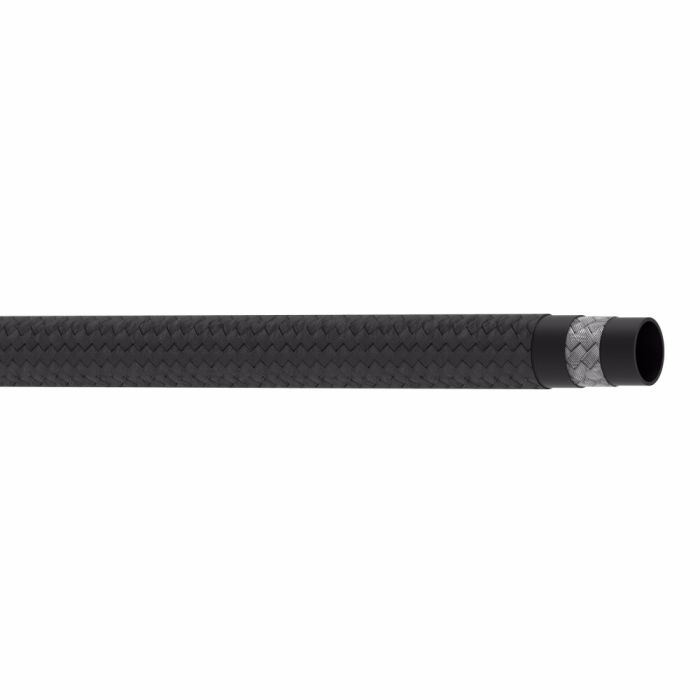

Aeroquip REFRIGERATION/AIR CONDITIONING SAE J2064 TYPE B

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number C1EU58, Alternate Part Number MI-03634156, Alternate Part Number MINO-00015F34805	Certifications SAE 100R5	Color Black	Cover Material Polyester	Dash Size -24	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 10.50	Minimum Bend Radius 10.5	Minimum Working Temperature -40	Product Width 1.75	Qualified Hose Fittings SAE 100 R5 Reusable	Reinforcement Material Wire	Supplier Part Number FC558-24	Tube Material Chlorobutyl	Product Weight 3.05 lbs

Product Questions & Answers 2

Product Questions & Answers

What kind of fittings do I need with this hose?

Question by: Clint H on Nov 7, 2025, 6:52 PM

SAE 100 R5 Reusable fittings are the compatible type.

Answer by: Customer Support on Nov 9, 2025, 2:36 PM

what's the minimum bend radius on this hose? got some tight routing under the hood and need to know before I order

Question by: Dale P on Jan 17, 2026, 1:55 PM

At dash size -24, the minimum bend radius is 10.5 inches. If your routing requires tighter curves than that, you'd be looking at kinking or restricting flow, so it's worth mapping out your path before committing to this size.

Answer by: Customer Support on Jan 19, 2026, 8:02 AM
