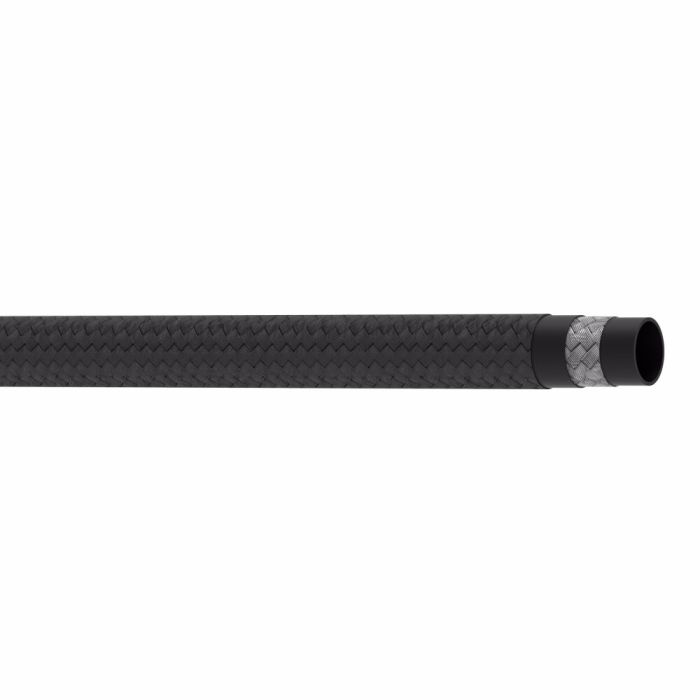

Aeroquip R134A Refridgerant Hose FC558-10

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MI-03007880, Alternate Part Number MINO-00015F55877	Certifications SAE 100R5	Color Black	Cover Material Polyester	Dash Size -10	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 5.50	Minimum Bend Radius 5.5	Minimum Working Temperature -40	Product Width 0.92	Qualified Hose Fittings 100R5 Reusable	Reinforcement Material Wire	Supplier Part Number FC558-10	Tube Material Chlorobutyl	Product Weight 0.31 lbs

Product Questions & Answers 3

Product Questions & Answers

got a tight spot to snake a line through. how tight can this hose bend without kinking up on me?

Question by: Brett B on Jan 8, 2026, 10:07 AM

For routing, the minimum bend radius is 5.5 inches. Keeping your bend at or above that radius helps it stay flexible without stressing the reinforcement.

Answer by: Customer Support on Jan 9, 2026, 4:13 PM

how tight a bend can you make with this hose before it starts kinking up on you?

Question by: Ray H on May 25, 2025, 7:09 PM

Minimum bend radius on this one is 5.5 inches, so keep your routing at or above that and you won't have any kinking issues. If you're working a tight spot under a unit, plan your path before you commit so you're not fighting it after the fittings are already on.

Answer by: Customer Support on May 27, 2025, 8:21 AM

Will this hose work with R134A refrigerant without breaking down?

Question by: Gary P on Jun 25, 2025, 10:06 AM

Engineered specifically for R134A refrigerant, this Aeroquip hose uses a chlorobutyl tube material designed to resist degradation from that particular refrigerant.

Answer by: Customer Support on Jun 26, 2025, 12:05 PM
