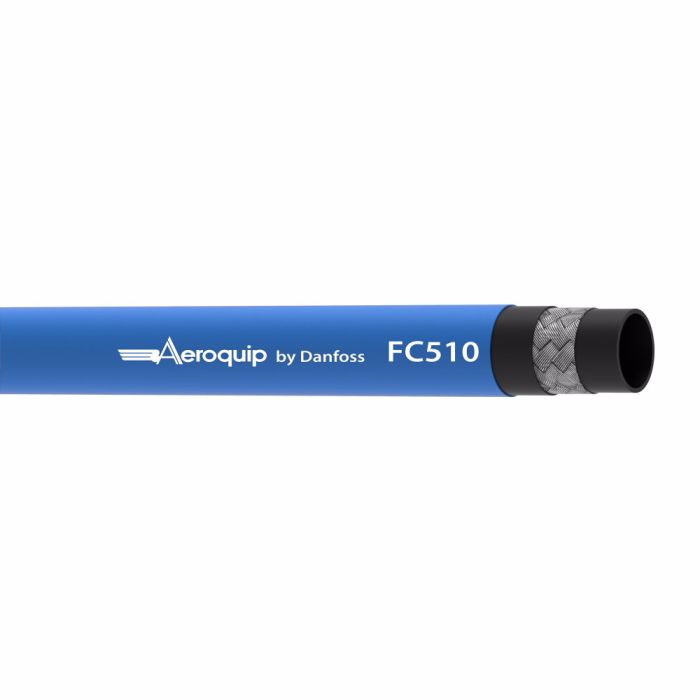

Aeroquip HI PAC Hose FC510-10

Specifications

Abrasion Resistance 28	Application Petroleum and fire-resistant hydraulic fluids, fuel and lubricating oils, gasoline, water and other industrial fluids.	Certifications SAE 100R2AT\|EN857 1SC	Color Blue	Compliances USCG\|MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material Elastomer	Dash Size -10	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 6	Minimum Bend Radius 6	Minimum Working Temperature -40	Product Width 0.93	Qualified Hose Fittings TTC, 1SA, Hi-Pac Reusable	Reinforcement Material Hi-Pac Wire	Sub Brand Aeroquip	Supplier Part Number FC510-10	Tube Material AQP Inner tube	Product Weight 1.57 lbs

Product Questions & Answers 4

Product Questions & Answers

Hey, can this Aeroquip hose handle regular hydraulic fluid and also some oil without, you know, falling apart?

Question by: Kent A on May 21, 2025, 12:33 PM

This Aeroquip HI PAC hose is constructed with an AQP inner tube and elastomer cover, making it suitable for use with petroleum-based hydraulic fluids, lubricating oils, and even gasoline, along with water and other industrial fluids.

Answer by: Customer Support on May 22, 2025, 7:02 PM

got a -10 hose on a skid steer that’s starting to crack, is this FC510-10 the same kind of hose or am i mixing things up

Question by: Peggy A on Jun 8, 2025, 12:56 PM

The key match points you can confirm from this hose are the dash size and the standard. FC510-10 is a -10 size hose and it meets SAE 100R2AT and EN857 1SC, with a 1 ply braid construction and a 0.93 inch product width.

Answer by: Customer Support on Jun 9, 2025, 6:29 PM

What kind of stuff can I run through this hose? I'm mainly dealing with hydraulic fluids and some gasoline.

Question by: Shane M on Jun 30, 2025, 4:55 PM

It's designed for petroleum and fire-resistant hydraulic fluids, fuel and lubricating oils, gasoline, water and other industrial fluids.

Answer by: Customer Support on Jul 2, 2025, 6:42 AM

got a tight spot to route this hose, how sharp can i bend the FC510-10 without kinking it

Question by: Harold C on May 23, 2025, 8:19 PM

For routing, the minimum bend radius on the FC510-10 is 6 inches. Staying at or above that bend radius helps keep the hose from kinking and also supports longer assembly life.

Answer by: Customer Support on May 25, 2025, 6:02 AM
