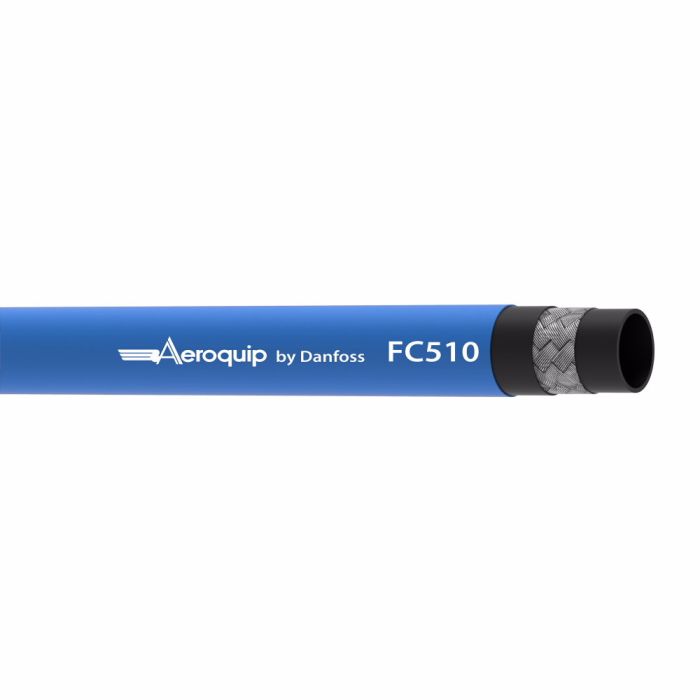

Aeroquip HI PAC Hose FC510-06

Specifications

Abrasion Resistance 28	Application Petroleum and fire-resistant hydraulic fluids, fuel and lubricating oils, gasoline, water and other industrial fluids.	Certifications EN857 1SC\|SAE 100R2AT	Color Blue	Compliances USCG\|MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material Elastomer	Dash Size -6	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 3.50	Minimum Bend Radius 3.5	Minimum Working Temperature -40	Product Width 0.69	Qualified Hose Fittings TTC, 1SA, Hi-Pac Reusable	Reinforcement Material Hi-Pac Wire	Sub Brand Aeroquip	Supplier Part Number FC510-06	Tube Material AQP Inner tube	Product Weight 1.13 lbs

Product Questions & Answers 2

Product Questions & Answers

got a tight spot to snake a line through. how tight can this -6 hi pac hose bend without kinkin it up?

Question by: Ronnie A on Feb 26, 2026, 2:33 PM

For routed installs, the minimum bend radius is 3.5 inches. Keeping bends at or above that radius helps it hold shape and avoid damage in tight runs.

Answer by: Customer Support on Feb 28, 2026, 6:29 AM

what fluids is this hose rated for? got a machine running on fire-resistant hydraulic fluid and need something that'll hold up

Question by: Bonnie A on Sep 12, 2025, 11:12 AM

Fire-resistant hydraulic fluids are on the approved list for this hose, along with petroleum-based hydraulic fluids, fuel and lubricating oils, gasoline, and water. The AQP inner tube handles a solid range of industrial fluids, so it covers most common hydraulic system setups without issue.

Answer by: Customer Support on Sep 13, 2025, 11:47 AM
