Adaptall F Din X Male Npt 5307L-08-04

Specifications

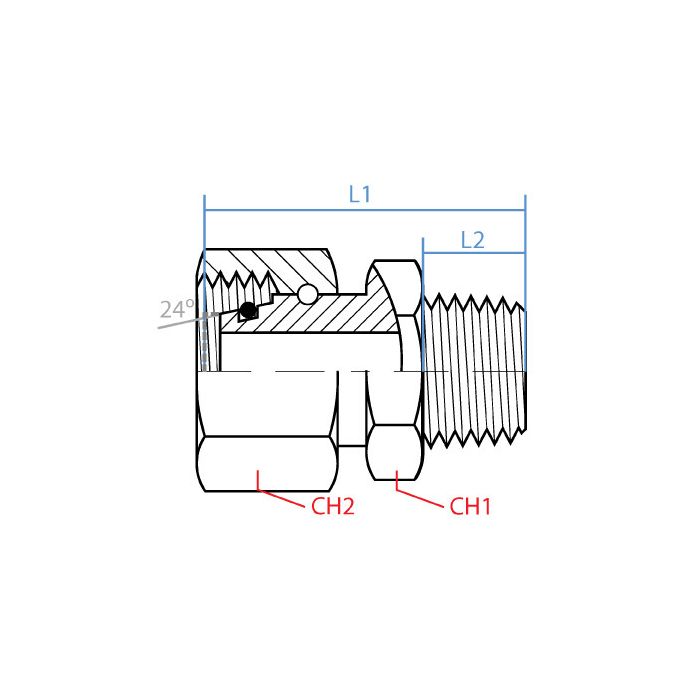

CH1 Width 14mm	CH2 Width 17mm	L1 Length 41.5mm	L2 Length 15mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender F	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5307L-08-04	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

What size wrench do I need for this fitting?

Question by: Todd T on Mar 28, 2026, 9:19 AM

You'll need a 14mm wrench for the Ch1 side and a 17mm wrench for the Ch2 side.

Answer by: Customer Support on Mar 30, 2026, 6:55 AM

Got a hydraulic line coming off a metric DIN fitting and need to tie into a 1/4" NPT port on a manifold. this adapter gonna work for that?

Question by: Gary B on Jul 17, 2025, 8:41 AM

That's what this piece is built for. One end is a female DIN tube fitting with an M14 x 1.5 thread at L08 size, and the other end is a 1/4" male NPTF connection. Steel construction, straight configuration, so it drops right in without any angled offset. The wrench flats are 14mm on the DIN side and 17mm on the NPT side, so you've got good purchase on both ends when you're torquing it down.

Answer by: Customer Support on Jul 18, 2025, 3:38 PM

got a female DIN tube fitting thats M14 x 1.5, size L08. will this adapter get me over to a 1/4 npt port?

Question by: Judy J on Feb 23, 2026, 1:35 PM

For tying a metric DIN tube connection into an NPT threaded port, this adapter matches a female DIN tube end with M14 x 1.5 threads (L08) on one side and a 1/4 - 18 NPTF male on the other.

Answer by: Customer Support on Feb 24, 2026, 7:20 PM
