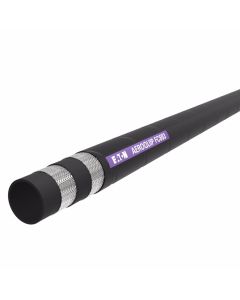

EPDM Double Wire Braid Aviation Ground Support Hose, 0.25 Inch ID, Up to 5000.00 PSI

Abrasion Resistance 29	Application For use with phosphate ester base fluids	Color Green	Conductivity 30	Construction 2-ply braid	Cover Material EPDM	Dash Size -4	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Hose I.D. 0.25	Hose O.D. 0.60	Lay Line Style Ink Transfer	Maximum Operating Pressure 5000	Minimum Bend Radius 4	Minimum Bend Radius 4	Minimum Working Temperature -40	Reel Qty (ft) Rolls Only	Reinforcement Material Wire	Supplier Part Number FC693-04	Tube Material EPDM	Alternate Part Numbers Alternate Part Number C1CS97, Alternate Part Number MI-04149564, Alternate Part Number MINO-00015X00588	Product Weight 0.91 lbs

Product Questions & Answers 2

Product Questions & Answers

Can this hose handle Skydrol fluids, or will it degrade?

Question by: Merle C on Dec 11, 2025, 6:42 PM

This Aeroquip hose is designed for aviation ground support equipment using straight phosphate ester fluids like Skydrol LD4, Skydrol 500B, and Hyjet IVA Plus.

Answer by: Customer Support on Dec 13, 2025, 6:14 AM

does this hose hold up to Skydrol? we run LD4 in our ground support equipment and need something that ain't gonna deteriorate on us

Question by: Neil F on Apr 13, 2025, 3:40 PM

Skydrol LD4 is one of the phosphate ester fluids this hose is specifically built for. The EPDM tube and cover are chemically compatible with straight phosphate ester base fluids, which includes Skydrol LD4, Skydrol 500B, and Hyjet IVA Plus. Just make sure you're running straight phosphate ester fluid and not a blend with other fluid types, since compatibility is rated for those specific fluids only.

Answer by: Customer Support on Apr 15, 2025, 6:13 AM
