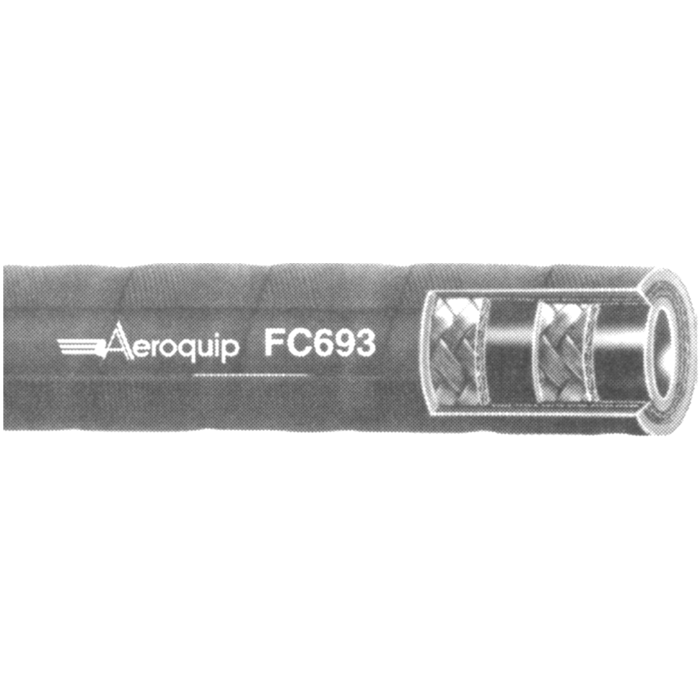

EPDM Double Wire Braid Aviation Ground Support Hose
Application |
Aviation ground support equipment service with straight phosphate ester fluids (Skydrol LD4, Skydrol 500B, Hyjet IVA Plus). Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on |
Construction |
EPDM tube, double wire braid reinforcement and green EPDM cover. |
Note |
Not designed for use with petroleum based fluids. |
Temperature Range |
-40°F. to +175°F. |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Reel Qty (ft) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
| FC693-04 | 0.25 | 0.595 | 5000 | 4 | Rolls Only |
|
||
| FC693-06 | 0.38 | 0.75 | 4000 | 5 | Rolls Only |
|
||
| FC693-08 | 0.5 | 0.871 | 3500 | 7 | Rolls Only |
|
