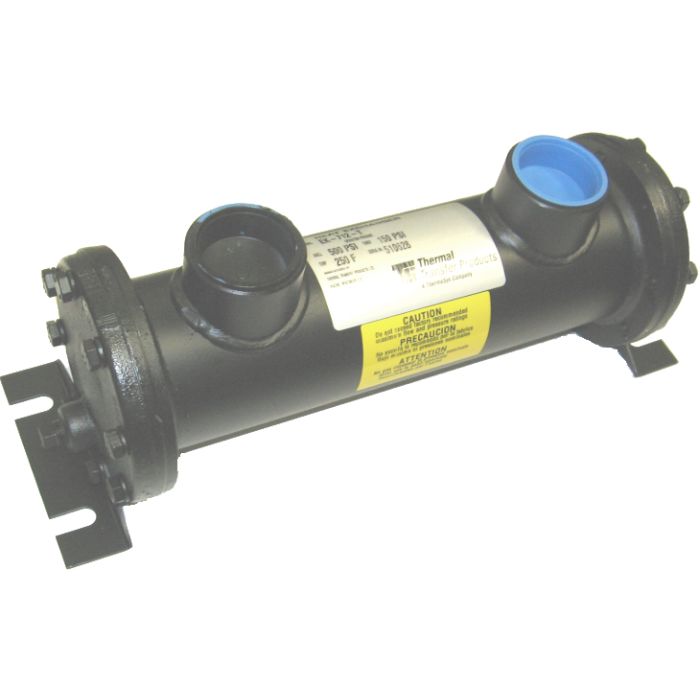

EK Series Water Cooled Industrial Heat Exchangers, Up To 400 HP Heat Removal
Features |
High efficiency finned bundle design. Compact size. Low cost. Optional built-in SURGE-CUSHION® relief by-pass valve. Heat removal to 400 HP. Oil flow rates up to 80 GPM. Large oil connections for minimum entering and exiting flow restriction. Removable end caps for easy tube cleaning. Mounting brackets can be positioned in 90° increments. |
Materials |
Copper or Copper-Nickel tubes. Aluminum fins. Grey iron end caps. Steel shell, tubesheets, baffles, mounting brackets. Nitrile Rubber/Cellulose Fiber gaskets. Aluminum foil nameplate. |
Maximum Operating Temperature |
250°F. |
Pressure Rating |
500 PSI Maximum Shell Side Pressure (Hydraulic). 150 PSI Maximum Tube Side Pressure (Water). |
Products
| Model Number | Tube Side Passes | Materials | A | B | C | E | F | G | K | Ports | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EK-712-T | 2-Pass | Copper | 14.19 | 5 | 5.47 | 3.52 | 7 | 3.57 | 0.44 | Oil (M): 1-1/2 NPT, Water (N): 3/4 NPT |
|
