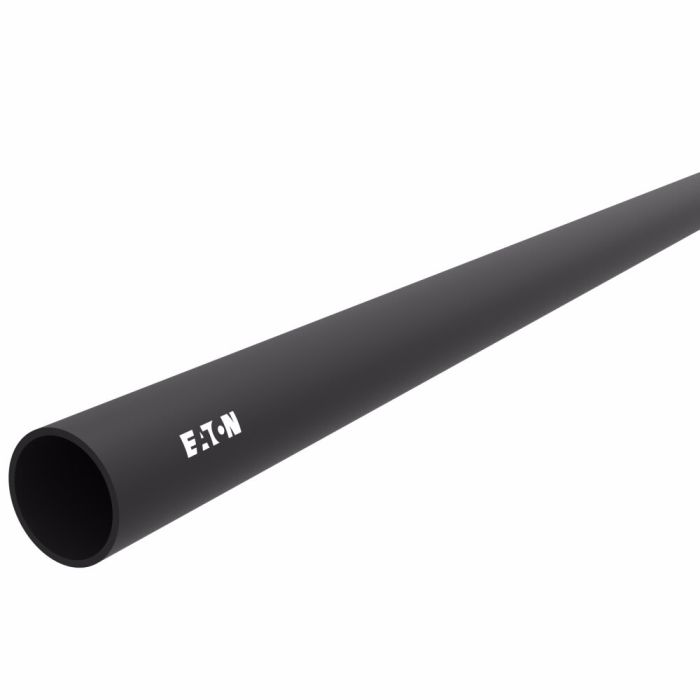

Nylon Air Brake Tubing, Black, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

Ask A Question
Abrasion Resistance
28
Application
Truck air brake systems, trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies.
Color
Black
Conductivity
13552
Construction
Extruded
Cover Material
UV Stabilized
Dash Size
-4
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
I.D.
0.17 in
Lay Line Style
Ink Jet
Minimum Bend Radius
1
Minimum Bend Radius
1
Minimum Working Temperature
-40
O.D.
0.25 in
Package Qty.
1000
Reinforcement Material
None
Supplier Part Number
4247-0410-1000
Tube Material
Polyamide Alloy
Type
A
Wall Thickness
0.04
Alternate Part Numbers
Alternate Part Number C1LX38
Product Weight
0.03 lbs
Product Questions & Answers 1

Product Questions & Answers

tubing rated for outside use year round? we run trucks through all kinds of weather and need something that ain't gonna crack up on us in the cold
Question by: Wade J on Jan 19, 2026, 12:58 PM
Cold weather performance is built into this tubing from the ground up. It holds up from negative 65 degrees Fahrenheit all the way to 200 degrees Fahrenheit, so freezing winters and hot summer hauls are both covered. The polyamide construction is UV-stabilized as well, meaning sun exposure over time won't degrade the outer surface the way it does with standard rubber. For truck air brake systems running in variable outdoor conditions, that combination of temperature range and UV resistance is exactly what you want.
Answer by: Customer Support on Jan 21, 2026, 6:06 AM

Similar Products

Model Number Type O.D. Wall Thickness I.D. Minimum Bend Radius Color Burst Pressure Package Qty. Price Buy Now
3270-0610-0100 B 0.375 in 0.06 0.25 in 1.5 Black 100
3270-0610-0500 B 0.375 in 0.06 0.25 in 1.5 Black 500
3270-0612-0500 B 0.375 in 0.06 0.25 in 1.5 Red 500
3270-0613-0500 B 0.375 in 0.06 0.25 in 1.5 Orange 500
3270-0614-0500 B 0.375 in 0.06 0.25 in 1.5 Yellow 500
3270-0615-0500 B 0.375 in 0.06 0.25 in 1.5 Green 500
3270-0616-0500 B 0.375 in 0.06 0.25 in 1.5 Blue 500
3270-0810-0100 B 0.5 in 0.06 0.38 in 2 Black 100
3270-0810-0500 B 0.5 in 0.06 0.38 in 2 Black 500
3270-08104 B 0.5 in 0.06 0.38 in 2 Black 1500
3270-0812-0500 B 0.5 in 0.06 0.38 in 2 Red 500
3270-08124 B 0.5 in 0.06 0.38 in 2 Red 1500
3270-0815-0500 B 0.5 in 0.06 0.38 in 2 Green 500
3270-1010-0250 B 0.625 in 0.09 0.44 in 2.5 Black 250
3270-10103 B 0.625 in 0.09 0.44 in 2.5 Black 750
3270-1012-0250 B 0.625 in 0.09 0.44 in 2.5 Red 250
3270-1013-0250 B 0.625 in 0.09 0.44 in 2.5 Orange 250
3270-1015-0250 B 0.625 in 0.09 0.44 in 2.5 Green 250
3270-1016-0250 B 0.625 in 0.09 0.44 in 2.5 Blue 250
3270-1210-0250 B 0.75 in 0.09 0.57 in 3 Black 250
3270-1215-0250 B 0.75 in 0.09 0.57 in 3 Green 250
4245-0220-1000 A 0.125 in 0.02 0.08 in 1.25 Black 1000
4245-0520-0500 A 0.313 in 0.04 0.23 in 1.13 Black 500
4247-0410-0100 A 0.25 in 0.04 0.17 in 1 Black 100
4247-0410-1000 A 0.25 in 0.04 0.17 in 1 Black 1000
4247-0412-1000 A 0.25 in 0.04 0.17 in 1 Red 1000
4247-0413-1000 A 0.25 in 0.04 0.17 in 1 Orange 1000
4247-0414-1000 A 0.25 in 0.04 0.17 in 1 Yellow 1000
4247-0415-1000 A 0.25 in 0.04 0.17 in 1 Green 1000
4247-0416-1000 A 0.25 in 0.04 0.17 in 1 Blue 1000
