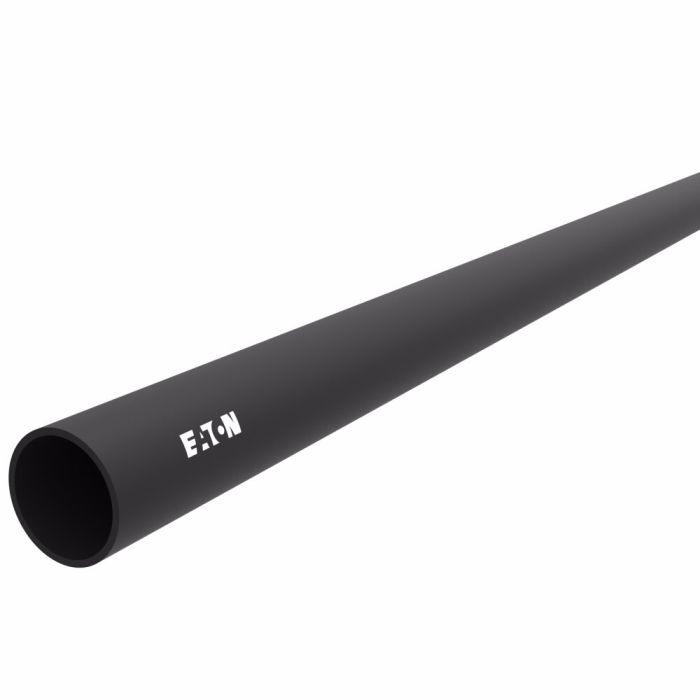

main product photo

Nylon Air Brake Tubing, Black, 0.31 Inch OD, 0.04 Inch Wall Thickness, 500 Feet Per Pack

Ask A Question
Abrasion Resistance
28
Application
Truck air brake systems, trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies.
Color
Black
Construction
Extruded
Cover Material
UV Stabilized
Dash Size
-5
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
FT
I.D.
0.23 in
Lay Line Style
Ink Jet
Minimum Bend Radius
1.13
Minimum Bend Radius
1.13
Minimum Working Temperature
-40
O.D.
0.313 in
Package Qty.
500
Reinforcement Material
Polyamide
Supplier Part Number
4245-0520-0500
Tube Material
Polyamide
Type
A
Wall Thickness
0.04
Alternate Part Numbers
Alternate Part Number C1MJ91
Product Weight
0.05 lbs
Product Questions & Answers 2

Product Questions & Answers

What's the smallest circle I can bend this tubing into without messing it up?
Question by: Scott M on Jul 19, 2025, 9:25 PM
The minimum bend radius for this tubing is 1.13 inches. Trying to bend it tighter than that could cause kinks or damage.
Answer by: Customer Support on Jul 21, 2025, 8:57 AM
tubing rated for cold weather use? got rigs sitting outside all winter and need something that ain't gonna crack on me
Question by: Tony W on Jun 17, 2025, 11:29 AM
Rated from -65°F up to 200°F, so hard freezes won't be an issue for this tubing. The extruded polyamide construction holds up in temperature extremes better than standard rubber alternatives, and the UV stabilization helps it resist breakdown from sun exposure during warmer months too. For outdoor fleet use in cold climates, it's a solid fit.
Answer by: Customer Support on Jun 19, 2025, 6:45 AM

Similar Products

Model Number Type O.D. Wall Thickness I.D. Minimum Bend Radius Color Burst Pressure Package Qty. Price Buy Now
3270-0610-0100 B 0.375 in 0.06 0.25 in 1.5 Black 100
3270-0610-0500 B 0.375 in 0.06 0.25 in 1.5 Black 500
3270-0612-0500 B 0.375 in 0.06 0.25 in 1.5 Red 500
3270-0613-0500 B 0.375 in 0.06 0.25 in 1.5 Orange 500
3270-0614-0500 B 0.375 in 0.06 0.25 in 1.5 Yellow 500
3270-0615-0500 B 0.375 in 0.06 0.25 in 1.5 Green 500
3270-0616-0500 B 0.375 in 0.06 0.25 in 1.5 Blue 500
3270-0810-0100 B 0.5 in 0.06 0.38 in 2 Black 100
3270-0810-0500 B 0.5 in 0.06 0.38 in 2 Black 500
3270-08104 B 0.5 in 0.06 0.38 in 2 Black 1500
3270-0812-0500 B 0.5 in 0.06 0.38 in 2 Red 500
3270-08124 B 0.5 in 0.06 0.38 in 2 Red 1500
3270-0815-0500 B 0.5 in 0.06 0.38 in 2 Green 500
3270-1010-0250 B 0.625 in 0.09 0.44 in 2.5 Black 250
3270-10103 B 0.625 in 0.09 0.44 in 2.5 Black 750
3270-1012-0250 B 0.625 in 0.09 0.44 in 2.5 Red 250
3270-1013-0250 B 0.625 in 0.09 0.44 in 2.5 Orange 250
3270-1015-0250 B 0.625 in 0.09 0.44 in 2.5 Green 250
3270-1016-0250 B 0.625 in 0.09 0.44 in 2.5 Blue 250
3270-1210-0250 B 0.75 in 0.09 0.57 in 3 Black 250
3270-1215-0250 B 0.75 in 0.09 0.57 in 3 Green 250
4245-0220-1000 A 0.125 in 0.02 0.08 in 1.25 Black 1000
4245-0520-0500 A 0.313 in 0.04 0.23 in 1.13 Black 500
4247-0410-0100 A 0.25 in 0.04 0.17 in 1 Black 100
4247-0410-1000 A 0.25 in 0.04 0.17 in 1 Black 1000
4247-0412-1000 A 0.25 in 0.04 0.17 in 1 Red 1000
4247-0413-1000 A 0.25 in 0.04 0.17 in 1 Orange 1000
4247-0414-1000 A 0.25 in 0.04 0.17 in 1 Yellow 1000
4247-0415-1000 A 0.25 in 0.04 0.17 in 1 Green 1000
4247-0416-1000 A 0.25 in 0.04 0.17 in 1 Blue 1000
