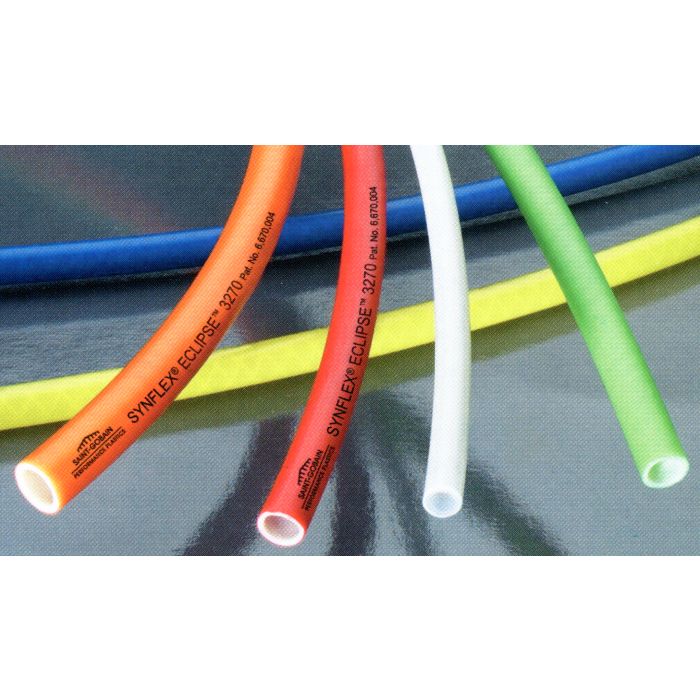

Eclipse / Solstice Nylon Air Brake Tubing
Agency Listings |
Meets the performance of SAE J844, J1131, J2494-3 DOT-FMVSS 106 |
Application |
Truck & Trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies. |
Construction |
100% polyamide construction with polyester yarn reinforcement. UV stabilized, thermoformable. |
Features |
Superior abrasion resistance over rubber and Nylon 11 • Easy burr-free cutting to assemble • Enhanced flexibility over other nylon tubing • Improved flow performance over rubber & nylon. |
Temperature Range |
-65°F to 200°F. |
Products
| Model Number | Type | O.D. | Wall Thickness | I.D. | Minimum Bend Radius | Color | Burst Pressure | Package Qty. | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|
| 3270-0610-0100 | B | 0.375 in | 0.06 | 0.25 in | 1.5 | Black | 100 |
|
||
| 3270-0610-0500 | B | 0.375 in | 0.06 | 0.25 in | 1.5 | Black | 500 |
|
||
| 3270-0612-0500 | B | 0.375 in | 0.06 | 0.25 in | 1.5 | Red | 500 |
|
||
| 3270-0613-0500 | B | 0.375 in | 0.06 | 0.25 in | 1.5 | Orange | 500 |
|
||
| 3270-0614-0500 | B | 0.375 in | 0.06 | 0.25 in | 1.5 | Yellow | 500 |
|
||
| 3270-0615-0500 | B | 0.375 in | 0.06 | 0.25 in | 1.5 | Green | 500 |
|
||
| 3270-0616-0500 | B | 0.375 in | 0.06 | 0.25 in | 1.5 | Blue | 500 |
|
||
| 3270-0810-0100 | B | 0.5 in | 0.06 | 0.38 in | 2 | Black | 100 |
|
||
| 3270-0810-0500 | B | 0.5 in | 0.06 | 0.38 in | 2 | Black | 500 |
|
||
| 3270-08104 | B | 0.5 in | 0.06 | 0.38 in | 2 | Black | 1500 |
|
||
| 3270-0812-0500 | B | 0.5 in | 0.06 | 0.38 in | 2 | Red | 500 |
|
||
| 3270-08124 | B | 0.5 in | 0.06 | 0.38 in | 2 | Red | 1500 |
|
||
| 3270-0815-0500 | B | 0.5 in | 0.06 | 0.38 in | 2 | Green | 500 |
|
||
| 3270-1010-0250 | B | 0.625 in | 0.09 | 0.44 in | 2.5 | Black | 250 |
|
||
| 3270-10103 | B | 0.625 in | 0.09 | 0.44 in | 2.5 | Black | 750 |
|
||
| 3270-1012-0250 | B | 0.625 in | 0.09 | 0.44 in | 2.5 | Red | 250 |
|
||
| 3270-1013-0250 | B | 0.625 in | 0.09 | 0.44 in | 2.5 | Orange | 250 |
|
||
| 3270-1015-0250 | B | 0.625 in | 0.09 | 0.44 in | 2.5 | Green | 250 |
|
||
| 3270-1016-0250 | B | 0.625 in | 0.09 | 0.44 in | 2.5 | Blue | 250 |
|
||
| 3270-1210-0250 | B | 0.75 in | 0.09 | 0.57 in | 3 | Black | 250 |
|
||
| 3270-1215-0250 | B | 0.75 in | 0.09 | 0.57 in | 3 | Green | 250 |
|
||
| 4245-0220-1000 | A | 0.125 in | 0.02 | 0.08 in | 1.25 | Black | 1000 |
|
||
| 4245-0520-0500 | A | 0.313 in | 0.04 | 0.23 in | 1.13 | Black | 500 |
|
||
| 4247-0410-0100 | A | 0.25 in | 0.04 | 0.17 in | 1 | Black | 100 |
|
||
| 4247-0410-1000 | A | 0.25 in | 0.04 | 0.17 in | 1 | Black | 1000 |
|
||
| 4247-0412-1000 | A | 0.25 in | 0.04 | 0.17 in | 1 | Red | 1000 |
|
||
| 4247-0413-1000 | A | 0.25 in | 0.04 | 0.17 in | 1 | Orange | 1000 |
|
||
| 4247-0414-1000 | A | 0.25 in | 0.04 | 0.17 in | 1 | Yellow | 1000 |
|
||
| 4247-0415-1000 | A | 0.25 in | 0.04 | 0.17 in | 1 | Green | 1000 |
|
||
| 4247-0416-1000 | A | 0.25 in | 0.04 | 0.17 in | 1 | Blue | 1000 |
|
