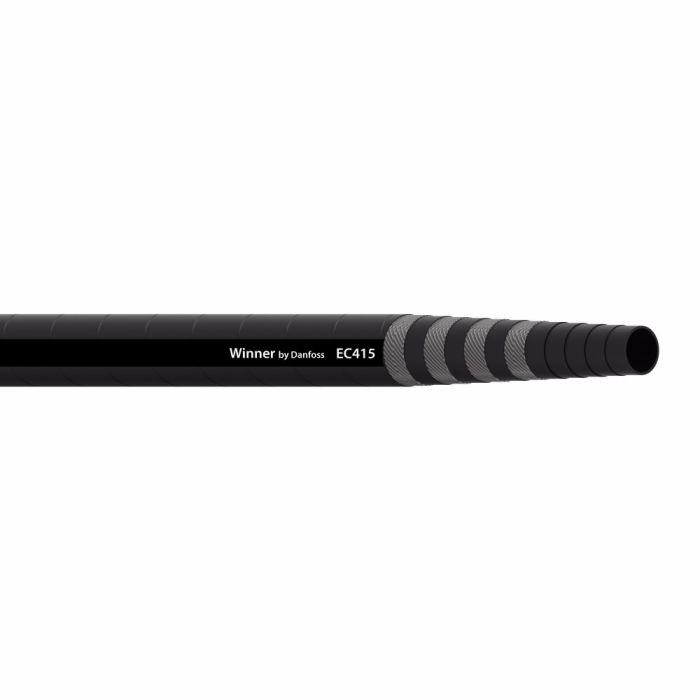

Hose EC415-20L

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MI-08753205, Alternate Part Number MINO-00015X93348, Alternate Part Number TK-EC415-20L	Application Hydraulic systems service with petroleum and water based fluids, for general use.	Certifications SAE 100R12\|EN856 Type R12	Color Black	Compliances USCG\|MSHA Approved	Conductivity 30	Construction 4 Spiral	Cover Material Synthetic Rubber	Dash Size -20	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 16.54	Minimum Bend Radius 16.54	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 1.77	Qualified Hose Fittings 4S, 6S	Reinforcement Material Wire	Sub Brand Winner	Supplier Part Number EC415-20L	Tube Material Synthetic Rubber	Product Weight 0.79 lbs

Product Questions & Answers 4

Product Questions & Answers

got a tight spot to snake a hose through, how sharp can this -20 line bend without kinkin?

Question by: Ross R on Mar 4, 2026, 9:05 AM

Minimum bend radius on the EC415-20L is 16.54, so you will want to keep your routing at or above that radius to avoid stressing the hose.

Answer by: Customer Support on Mar 5, 2026, 1:03 PM

got a -20 line to replace. is EC415-20L the same dash size, and what standard is it built to?

Question by: Phil A on Apr 27, 2025, 10:19 AM

Fit-wise, EC415-20L is a -20 dash size hose, and it’s built to SAE 100R12 and EN856 Type R12.

Answer by: Customer Support on Apr 28, 2025, 3:13 PM

Does this hose hold up running petroleum-based fluid through it day in and day out, or is it more of a light-duty setup?

Question by: Roger W on May 11, 2025, 8:51 AM

Petroleum-based hydraulic fluid is exactly what this hose is built around. The synthetic rubber tube and four-spiral wire reinforcement are rated for continuous hydraulic service, and the impulse cycle life comes in at 500,000 cycles, so it handles sustained, high-demand use without issue. It also works with water-based fluids if your system runs that way.

Answer by: Customer Support on May 13, 2025, 6:00 AM

Will this hose work with regular hydraulic fluid, or does it need somethin' special?

Question by: Lynn K on Jan 2, 2026, 7:45 AM

Application-wise, it's designed for hydraulic systems using both petroleum and water-based fluids, so regular hydraulic fluid should be just fine.

Answer by: Customer Support on Jan 4, 2026, 6:28 AM
