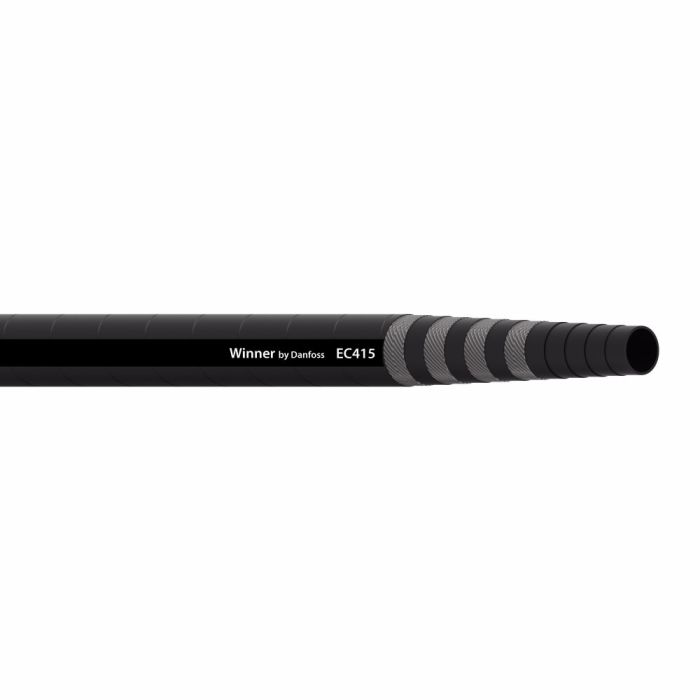

Hose EC415-16L

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MI-08753204, Alternate Part Number MINO-00015X93347, Alternate Part Number TK-EC415-16L	Application Hydraulic systems service with petroleum and water based fluids, for general use.	Certifications SAE 100R12\|EN856 Type R12	Color Black	Compliances USCG\|MSHA Approved	Conductivity 30	Construction 4 Spiral	Cover Material Synthetic Rubber	Dash Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 11.81	Minimum Bend Radius 11.81	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 1.40	Qualified Hose Fittings 4S, 6S	Reinforcement Material Wire	Sub Brand Winner	Supplier Part Number EC415-16L	Tube Material Synthetic Rubber	Product Weight 0.61 lbs

Product Questions & Answers 3

Product Questions & Answers

does this hose work with water-based hydraulic fluids or just petroleum stuff?

Question by: Brent M on Feb 22, 2026, 8:36 PM

Both, actually. The EC415 series is rated for use with petroleum-based and water-based hydraulic fluids, so you've got flexibility depending on what your system runs on. The synthetic rubber tube handles either without issue.

Answer by: Customer Support on Feb 24, 2026, 8:44 AM

Got a -16 line to replace, is this EC415 hose the right kind for petroleum oil and water based hydraulic fluid?

Question by: Rex C on Oct 23, 2025, 5:02 PM

For general hydraulic system service, the EC415-16L is rated for petroleum and water based fluids, so it fits that use case for a -16 hose.

Answer by: Customer Support on Oct 25, 2025, 6:17 AM

does this hose hold up running petroleum-based fluid all day, every day, or is it more of a light-duty setup?

Question by: Curt F on Nov 22, 2025, 7:51 AM

Four-spiral wire reinforcement puts this one in the heavy-duty category. It's built to handle continuous hydraulic service with petroleum-based fluids and carries an impulse cycle life rated at 500,000 cycles, so it's not a light-duty product by any stretch. The synthetic rubber tube and cover hold up under those conditions, and the hose meets both SAE 100R12 and EN856 Type R12 certification standards, which are among the more demanding ratings in hydraulic hose service.

Answer by: Customer Support on Nov 23, 2025, 9:27 PM
