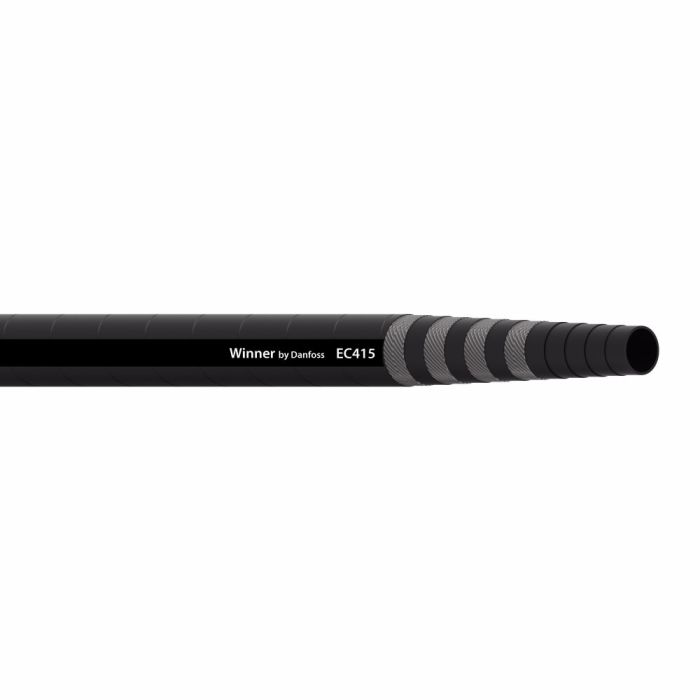

Hose EC415-12L

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number EC415-12LRL, Alternate Part Number MI-08753201, Alternate Part Number MINO-00015X93346, Alternate Part Number TK-EC415-12L	Application Hydraulic systems service with petroleum and water based fluids, for general use.	Certifications EN856 Type R12\|SAE 100R12	Color Black	Compliances MSHA Approved\|USCG	Conductivity 30	Construction 4 Spiral	Cover Material Synthetic Rubber	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 9.45	Minimum Bend Radius 9.45	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 1.12	Qualified Hose Fittings 4S, 6S	Reinforcement Material Wire	Sub Brand Winner	Supplier Part Number EC415-12L	Tube Material Synthetic Rubber	Product Weight 0.48 lbs

Product Questions & Answers 5

Product Questions & Answers

does this hose hold up to high pressure cycles or is it more of a light duty line?

Question by: Ross B on May 4, 2025, 9:54 AM

Built around a 4-spiral wire reinforcement, this hose is rated for 500,000 impulse cycles, which puts it squarely in heavy-duty territory. It meets both SAE 100R12 and EN856 Type R12 standards, so sustained high-pressure hydraulic service is exactly what it was made for. Petroleum and water-based fluids are both compatible with the synthetic rubber tube.

Answer by: Customer Support on May 5, 2025, 9:16 PM

got a -12 line on a hydraulic rig, is this EC415-12L the kind of hose that’ll handle high pressure work?

Question by: Hank R on Jan 1, 2026, 6:26 PM

Built with a 4-spiral wire reinforcement, the EC415-12L is meant for tough hydraulic service and is rated to EN856 Type R12 and SAE 100R12. It is also called out for maximum durability under harsh operating conditions and a long impulse life of 500,000 cycles.

Answer by: Customer Support on Jan 3, 2026, 6:26 AM

Is this hose okay for hydraulic systems that use fluids besides just oil?

Question by: Jerry G on Jul 31, 2025, 6:57 PM

This hose is designed for hydraulic systems using both petroleum and water-based fluids, making it suitable for general use.

Answer by: Customer Support on Aug 2, 2025, 7:51 AM

got a tight spot to snake a hose through, how bendy is this EC415-12L before it kinks?

Question by: Rod W on Feb 16, 2026, 9:14 PM

For routing, the minimum bend radius is 9.45, so you want to keep your turns at or above that radius to maintain flow and avoid stressing the hose.

Answer by: Customer Support on Feb 17, 2026, 9:50 PM

does this hose work with water-based fluids or just oil? got a mixed system and need something that'll handle both

Question by: Darryl S on Jul 22, 2025, 9:20 PM

Both petroleum and water-based fluids are covered with this hose. It's built for hydraulic systems running either fluid type, so a mixed system setup isn't a problem from a compatibility standpoint.

Answer by: Customer Support on Jul 24, 2025, 3:25 PM
