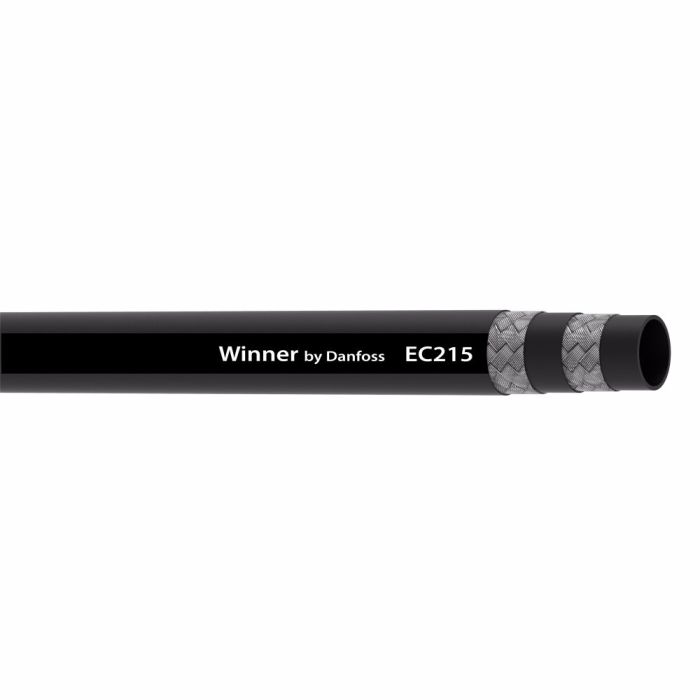

DANFOSS / EATON 100R16 HOSE EC215-32LRL

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number EC215-32, Alternate Part Number EC215-32LRL, Alternate Part Number MI-08753187, Alternate Part Number MINO-00015X93343, Alternate Part Number TK-EC215-32L	Application Hydraulic system service with petroleum and water-base fluids, for general industrial service.	Certifications EN857 2SC	Color Black	Compliances DNV\|BWB\|USCG\|MSHA Approved	Conductivity 30	Construction 2-ply braid	Cover Material Synthetic Rubber	Dash Size -32	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 200000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 15.75	Minimum Bend Radius 15.75	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 2.53	Qualified Hose Fittings TTC, Z, Winner 2-piece non-skived	Reinforcement Material Wire	Sub Brand Winner	Supplier Part Number EC215-32L	Tube Material Synthetic Rubber	Product Weight 0.08 lbs

Product Questions & Answers 4

Product Questions & Answers

hose rated for both petroleum and water-based fluids, or just one of them?

Question by: Hank F on Nov 11, 2025, 10:18 AM

Both are covered with this one. The EC215 series is built for hydraulic system service using petroleum-based fluids and water-base fluids, so you're not limited to one type. It's a general industrial hose, meaning it gets used across a pretty wide range of standard hydraulic applications without needing to swap out for a different product depending on what fluid you're running.

Answer by: Customer Support on Nov 12, 2025, 6:44 PM

What size fittings work best with this hose?

Question by: Patty G on Oct 18, 2025, 5:15 PM

Qualified hose fittings for this hose include TTC, Z, and Winner 2-piece non-skived types.

Answer by: Customer Support on Oct 20, 2025, 9:35 AM

got a tight spot to route this, what’s the minimum bend radius on the -32 size?

Question by: Lance B on Nov 19, 2025, 7:41 PM

For the -32 dash size, the minimum bend radius is 15.75.

Answer by: Customer Support on Nov 21, 2025, 12:50 PM

What kind of fittings work best with this hose? Don't wanna get the wrong thing, y'know?

Question by: Lance E on Mar 27, 2026, 6:57 PM

This hose is qualified for use with TTC, Z, and Winner 2-piece non-skived fittings, so stick with those for the best results.

Answer by: Customer Support on Mar 29, 2026, 8:55 AM
