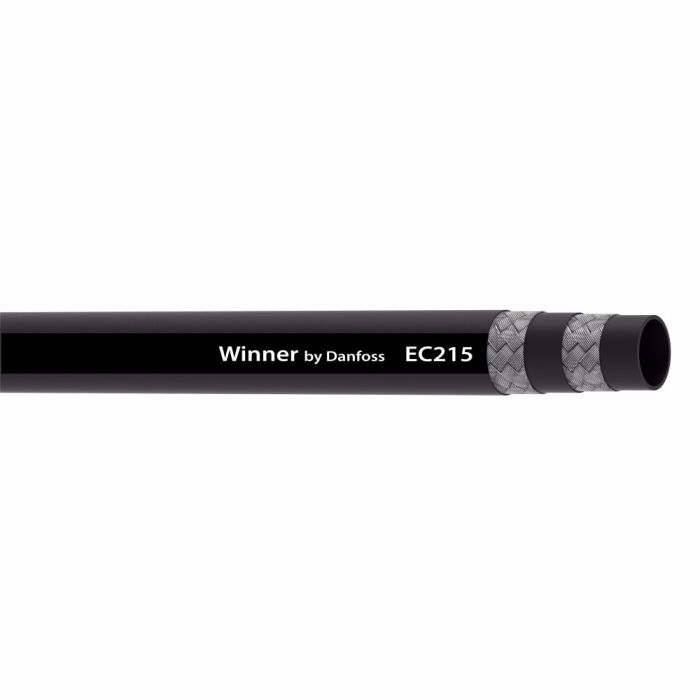

DANFOSS / EATON 100R16 HOSE EC215-24L

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number EC215-24LRL, Alternate Part Number MI-08753185, Alternate Part Number MINO-00015X93342, Alternate Part Number TK-EC215-24L	Application Hydraulic system service with petroleum and water-base fluids, for general industrial service.	Certifications EN857 2SC	Color Black	Compliances USCG\|BWB\|MSHA Approved\|DNV	Conductivity 30	Construction 2-ply braid	Cover Material Synthetic Rubber	Dash Size -24	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 200000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 11.81	Minimum Bend Radius 11.81	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 2.06	Qualified Hose Fittings TTC, Z, Winner 2-piece non-skived	Reinforcement Material Wire	Sub Brand Winner	Supplier Part Number EC215-24L	Tube Material Synthetic Rubber	Product Weight 0.06 lbs

Product Questions & Answers 3

Product Questions & Answers

hose says it's got a 200,000 cycle impulse life, is that enough for a heavy-duty hydraulic press running pretty much all day?

Question by: Tommy F on Sep 19, 2025, 6:21 PM

For continuous or near-continuous duty cycles, 200,000 impulse cycles is a solid benchmark and meets what most industrial hydraulic press setups demand. The 2-ply wire braid construction and synthetic rubber tube are built to hold up under repeated pressure swings, and the EC215 series is rated for the highest working pressures in its class. That said, the actual calendar life you see will depend on your system's cycle frequency, so a press hammering through cycles faster will burn through that number sooner than one running at a moderate pace.

Answer by: Customer Support on Sep 21, 2025, 4:51 PM

What's the smallest I can bend this without kinking it?

Question by: Hugh T on Nov 7, 2025, 4:26 PM

You're looking at an 11.81 inch minimum bend radius on this hose.

Answer by: Customer Support on Nov 9, 2025, 6:24 AM

got a tight run on a machine and don’t wanna kink the line, how tight can this EC215-24L hose bend?

Question by: Gary J on Oct 9, 2025, 11:34 AM

For routing, the minimum bend radius on the EC215-24L is 11.81 inches. Keeping your bend at or above that radius helps prevent kinking and protects the hose structure.

Answer by: Customer Support on Oct 11, 2025, 7:48 AM
