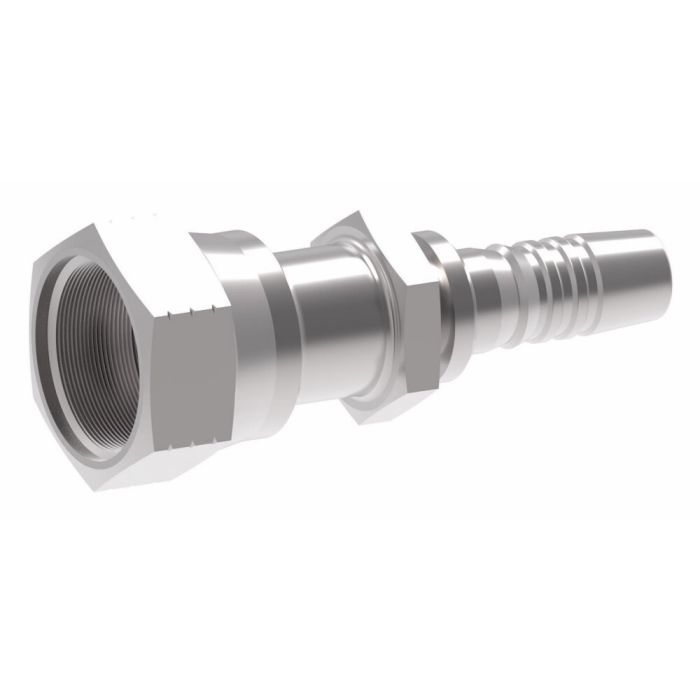

E-Z Clip Series Fitting, 7/16-20 Female SAE 45 deg Swivel, -04 Hose, Straight

D 1.34	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13556	End Size 1 0.44	End Size 2 0.25	End Type 1 UNF	End Type 2 Line/Hose/Tube	Hose Size -04	Mandrel Required No	Supplier Part Number GA24048-4-4	Thread 2 7/16-20	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1HL30	Product Weight 0.04 lbs

Product Questions & Answers 2

Product Questions & Answers

If I'm connecting this to a hose, what size is that hose gonna need to be? Just want to make sure I get the right one.

Question by: Roy R on Apr 19, 2025, 7:29 AM

For connecting to a hose, this fitting is made to work with a -04 hose size.

Answer by: Customer Support on Apr 21, 2025, 6:32 AM

trying to replace an old A/C line fitting, is this one the straight 7/16-20 female SAE 45 degree swivel for a -04 hose?

Question by: Melvin W on Aug 10, 2025, 7:14 PM

The key callouts on this part are 7/16-20 female SAE 45 degree swivel on one end and a -04 hose connection, and it is a straight configuration. It is an Eaton Aeroquip E-Z Clip Series fitting, with alternate part numbers GA24048-4-4 and C1HL30.

Answer by: Customer Support on Aug 11, 2025, 7:27 PM

Similar Products

Model Number	Thread 2	Hose Size	D
FJ3057-01-0606S	5/8-18	-06	1.62
FJ3057-02-0608S	5/8-18	-08	1.62
FJ3057-03-0808S	3/4-16	-08	2.02
FJ3057-04-0810S	3/4-16	-10	2.02
FJ3057-05-1010S	7/8-14	-10	2.08
FJ3057-06-1012S	7/8-14	-12	2.08
GA24048-4-4	7/16-20	-04	1.34
