E Series Manually Operated Pneumatic Valves, Up To 26 SCFM

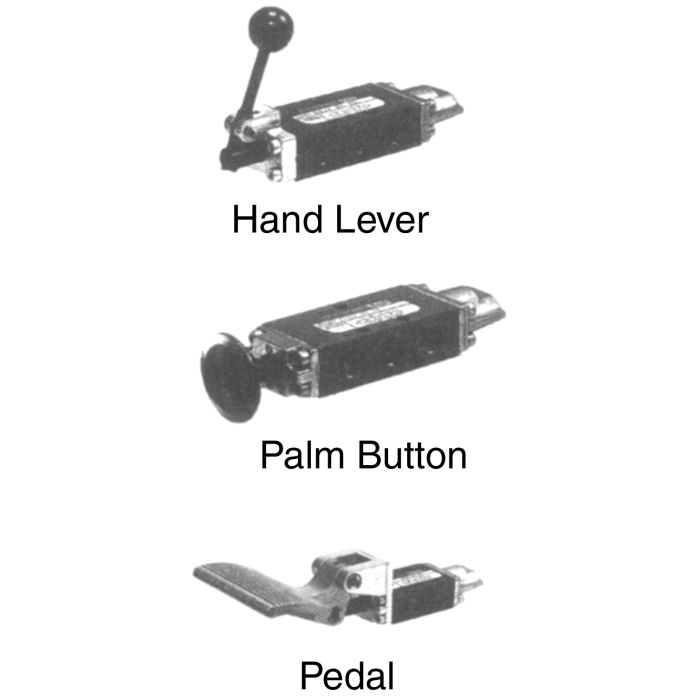

Actuators |
Hand Lever, Palm Button, Pedal, Treadle, Manual Bleed. |
Application |
Moderate flow applications requiring manual valve operation. |
Features |
Low profile. |
Flow Rating |
Based on 100 PSIG input and 85 PSIG output. |
Lubrication |
Valves use O-ring seals. For maximum performance and life expectancy, standard air line lubrication should be used. |
Materials |
Extruded aluminum body. Buna-N spool seals. |
Operating Pressure Range |
20-150 PSI. |
Temperature Range |
-10°F to 180°F. |
Products
| Model Number | Actuator Type | Valve Type | Spool Action | Ports | Flow Rating (SCFM) | CV Factor | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
| E212FS | Pedal | 4-way 2-position | Spring Return | 1/4 NPT (Side) | 26 | 0.7000 |
|
|
| E212LM | Hand Lever | 4-way 2-position | Manual Return | 1/4 NPT (Side) | 26 | 0.7000 |
|
|
| E312LS | Hand Lever | 4-way 3-position | Spring Centered | 1/4 NPT (Side) | 26 | 0.7000 |
|
