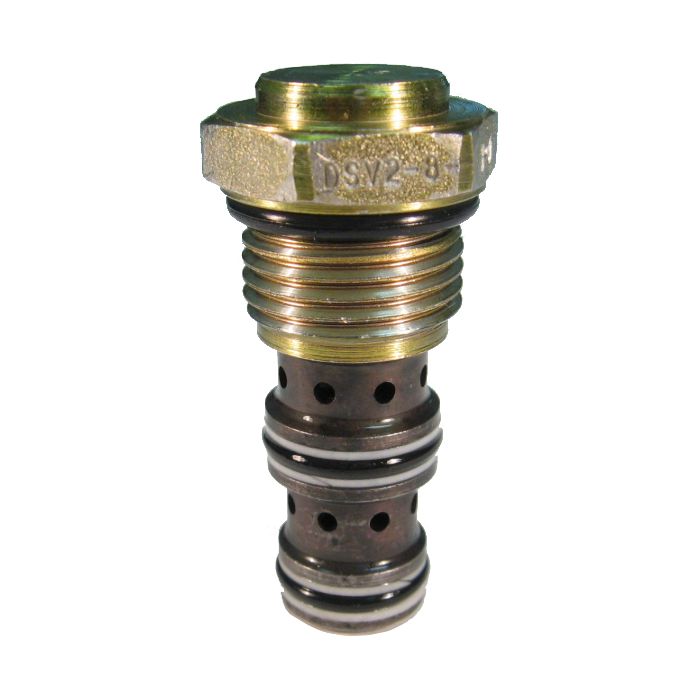

DSV2-8 Series Shuttle Cartridge Valves, Up To 3500 PSI & 6 GPM
Cartridge |
Model DSV2-8-*, sold separately. |
Group Description |
The DSV2-8-B is a direct acting, ball type, shuttle valve. |
Flow Rating |
6 GPM. |
Housing |
Cavity size C-8-3, sold separately, see |
Internal Leakage |
5 drops/min. maximum @ 3500 PSI (Between ports 2 and 1, and 2 and 3. Typical with fluid at 105 SSU and 120°F). |
Maximum Operating Pressure |
3500 PSI typical application pressure, 3500 PSI cartridge fatigue pressure (infinite life). CAUTION: Pressures over 3000 PSI require steel housing. |
Operation |
The shuttle valve senses the higher of two pressures at port 3 or port 1 and directs it to port 2. |
Recommended Filtration |
ISO 4406 Cleanliness Level 18/16/13 or cleaner. |
Temperature Range |
-40°F to 248°F (Extreme Limits). |
Products
| Model Number | Housing | Seal Material | Price | Buy Now |
|---|---|---|---|---|
| 02-171239 | DSV2-8-B-0 | None |
|
