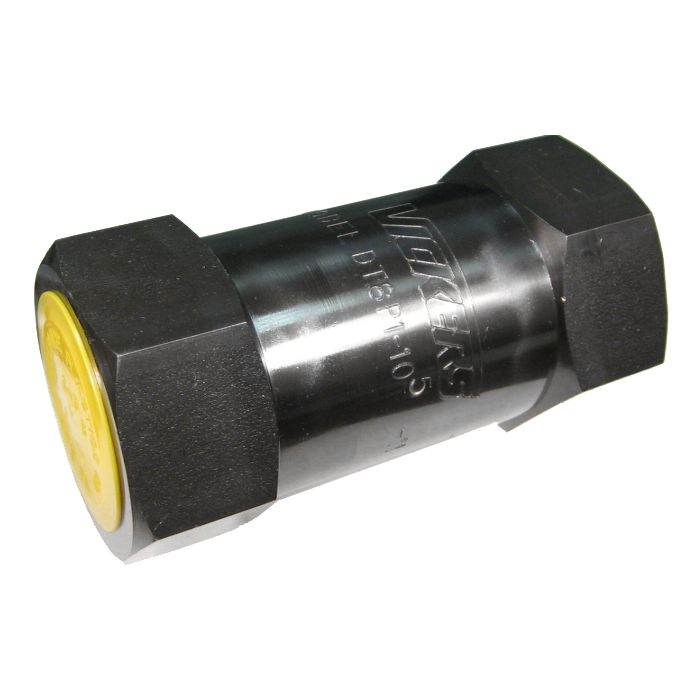

DS8P1 & DT8P1 Series Inline Check Valves, Up To 3000 PSI & 50 GPM
Application |
Used in hydraulic applications to allow free flow of fluid in one direction only. |
Construction |
Steel body. No elastomer seals. |
Maximum Operating Pressure |
3000 PSI (Designed for low shock service. Do NOT use this valve to check a high velocity reverse flow resulting in shock conditions). |
Products
| Part Number | Model Number | Size | Thread 1 | Rated Flow | Cracking Pressure (psi) | A | B | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| 114088 | DT8P1-02-5-10 | 1/4 | 1/4 NPT | 3.2 | 5 | 2.25 | 0.88 |
|
|
| 125670 | DT8P1-06-5-11 | 3/4 | 3/4 NPT | 20 | 5 | 3.88 | 1.5 |
|
|
| 117378 | DT8P1-03-5-10 | 3/8 | 3/8 NPT | 8 | 5 | 3 | 1 |
|
|
| 125667 | DT8P1-10-5-11 | 1-1/4 | 1-1/4 NPT | 50 | 5 | 5.25 | 2.5 |
|
