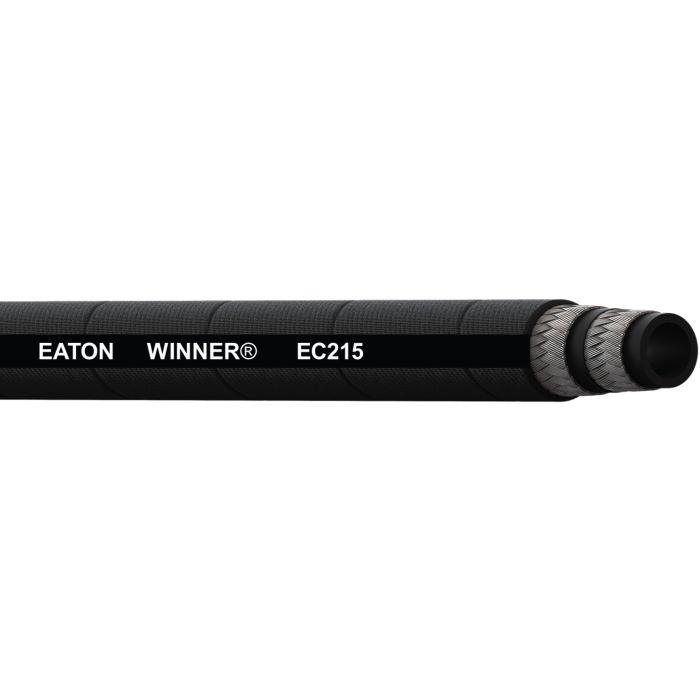

EN857 2SC Double Wire Braid Hose
Application |
Hydraulic system service with petroleum and water-based fluids; General industrial service. EN857 2SC and SAE 100R16 Performance (-04 thru -16). Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on |
Construction |
Synthetic rubber tube, Double wire braid reinforcement, Black synthetic rubber cover MSHA approved, Embossed layline. |
Crimp Fittings |
Global TTC (Steel) |
Temperature Range |
-40°F to +212°F |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Reel Qty (ft) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
| EC215-04LRL | 0.25 | 0.52 | 5800 | 1.97 | 500 |
|
||
| EC215-06LRL | 0.38 | 0.67 | 4800 | 2.56 | 500 |
|
||
| EC215-08LRL | 0.5 | 0.81 | 4000 | 3.54 | 500 |
|
||
| EC215-12LRL | 0.75 | 1.09 | 3125 | 4.72 | 250 |
|
||
| EC215-16LRL | 1 | 1.4 | 2400 | 6.3 | 250 |
|
||
| EC215-20L | 1.25 | 1.72 | 1800 | 9.84 |
|
|||
| EC215-10LRL | 0.62 | 0.94 | 3650 | 3.94 | 500 |
|
