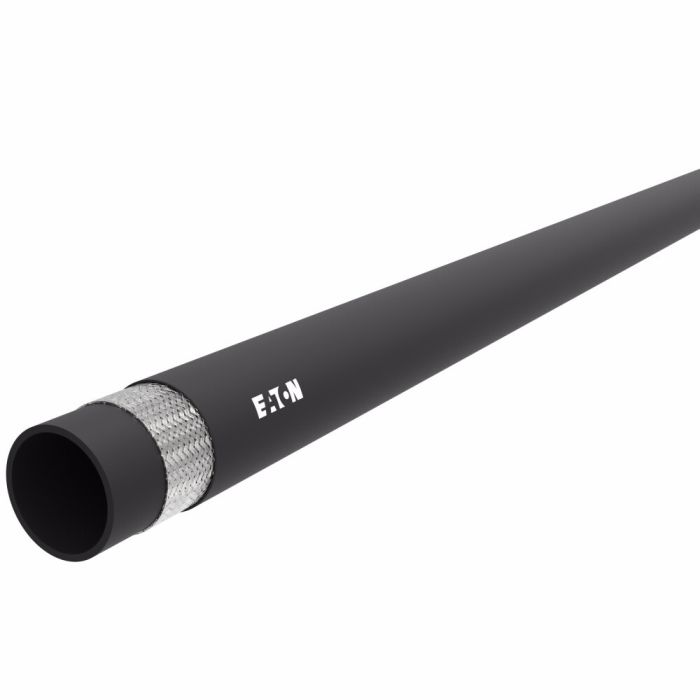

Double Wire Braid SAE 100R2AT Hose, 1.00 Inch ID, Up to 2500.00 PSI

Abrasion Resistance 29	Application Hydraulic systems with petroleum and water-glycol base fluids, for lubricating oils and water.	Burst Pressure Note Rating applies for Global fittings only. For other fittings, rating decreases to 8000 PSI	Color Black	Conductivity 30	Construction 2-ply braid	Cover Material PVC/nitrile blend	Dash Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Hose I.D. 1	Hose O.D. 1.50	Lay Line Style Transfer Tape	Maximum Operating Pressure 2500	Minimum Bend Radius 12	Minimum Bend Radius 12	Minimum Working Temperature -40	Operating Pressure Note Rating applies for Global fittings only. For other fittings, rating decreases to 2000 PSI	Reel Qty (ft) 125-200	Reinforcement Material Wire	Supplier Part Number GH793-16R150	Tube Material Nitrile	Alternate Part Numbers Alternate Part Number 2100-GH793-16, Alternate Part Number C1CX70, Alternate Part Number GH793-16-100, Alternate Part Number GH793-16-50, Alternate Part Number MI-00352075, Alternate Part Number MINO-00015F86355	Product Weight 0.99 lbs

Product Questions & Answers 5

Product Questions & Answers

Reckon this hose would work okay with regular hydraulic fluid, like the kind you get for tractors?

Question by: Frank L on Nov 25, 2025, 9:25 PM

Designed for hydraulic systems using both petroleum-based and water-glycol fluids, this hose is also compatible with lubricating oils and water, making it suitable for a range of general industrial applications.

Answer by: Customer Support on Nov 27, 2025, 10:33 AM

Running a hydraulic system on water-glycol fluid and need to know if this hose'll hold up to it. Pressure stays around 2200 PSI most of the time. Will the GH793-16 handle that?

Question by: Travis B on Feb 4, 2026, 8:36 AM

Water-glycol base fluids are one of the listed compatible fluid types for this hose, so you're in good shape there. At 2200 PSI you're well within the 2500 PSI operating limit, though that rating assumes you're pairing it with Global fittings. If you're using a different fitting type, the working pressure ceiling drops to 2000 PSI, which would put your 2200 PSI application over the rated limit. Worth double-checking your fitting spec before you commit.

Answer by: Customer Support on Feb 5, 2026, 6:19 PM

runs on a water-glycol system at work and been trying to find hose that'll hold up to it, this rated for that kind of fluid?

Question by: Carl R on Dec 2, 2025, 12:07 PM

Water-glycol base fluids are listed as a compatible application for this hose, right alongside petroleum-based hydraulic fluids and lubricating oils. The inner tube is nitrile-based, which handles that fluid type well in standard hydraulic service. Just make sure your fittings are up to spec too, since the burst pressure rating does vary depending on which fitting series you pair it with.

Answer by: Customer Support on Dec 4, 2025, 9:09 AM

Is this hose okay for hydraulic systems that use water-glycol based fluids?

Question by: Bobby R on Sep 12, 2025, 5:18 PM

Yes, this Aeroquip hose is designed for hydraulic systems using both petroleum and water-glycol base fluids, as well as lubricating oils and water.

Answer by: Customer Support on Sep 14, 2025, 4:09 PM

got a log splitter that runs 2500 psi. is this 1 inch hose the right kind for hydraulic oil

Question by: Curt B on Mar 5, 2026, 5:42 PM

Made for hydraulic systems using petroleum based fluids, this hose is a match for standard hydraulic oil service. It is also listed for water glycol base fluids, lubricating oils, and water.

Answer by: Customer Support on Mar 7, 2026, 3:15 PM

Similar Products

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Reel Qty (ft)	Operating Pressure Note	Burst Pressure Note
GH793-12R250	0.75	1.16	3125	9.5	225-300	Rating applies for Global fittings only. For other fittings, rating decreases to 2250 PSI	Rating applies for Global fittings only. For other fittings, rating decreases to 9000 PSI
GH793-16R150	1	1.5	2500	12	125-200	Rating applies for Global fittings only. For other fittings, rating decreases to 2000 PSI	Rating applies for Global fittings only. For other fittings, rating decreases to 8000 PSI
GH793-4R500	0.25	0.6	5750	4	450-550	Rating applies for Global fittings only. For other fittings, rating decreases to 5000 PSI	Rating applies for Global fittings only. For other fittings, rating decreases to 20000 PSI
GH793-6R500	0.38	0.75	5000	5	450-550	Rating applies for Global fittings only. For other fittings, rating decreases to 4000 PSI	Rating applies for Global fittings only. For other fittings, rating decreases to 16000 PSI
GH793-8R500	0.5	0.87	4250	7	450-550	Rating applies for Global fittings only. For other fittings, rating decreases to 3500 PSI	Rating applies for Global fittings only. For other fittings, rating decreases to 14000 PSI
GH793-10R250	0.62	0.98	3625	8	225-300	Rating applies for Global fittings only. For other fittings, rating decreases to 2750 PSI	Rating applies for Global fittings only. For other fittings, rating decreases to 11000 PSI
