Din2353 Series Ll Tube Nut

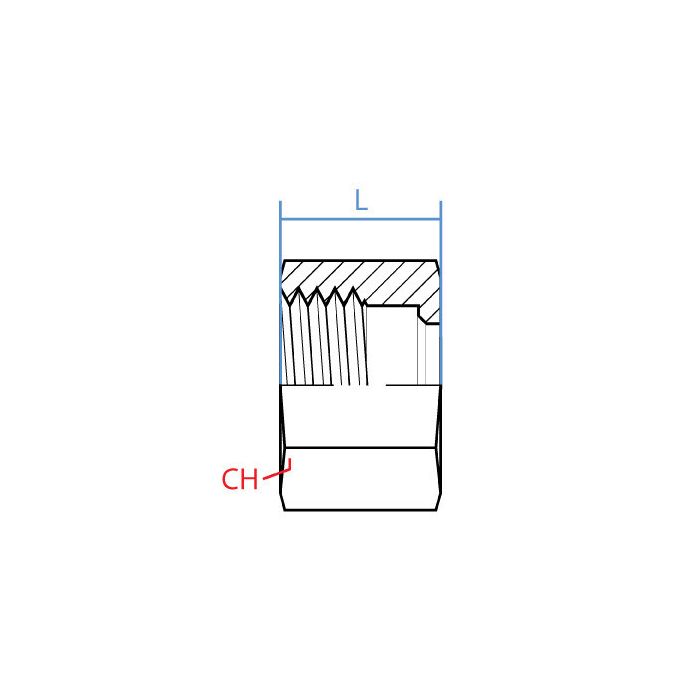

CH Width 14mm	L Length 12.7mm	Adaptall Material Steel	Adaptall Shape Component	Side 1 Callout M12 X 1.0	Side 1 Gender F	Side 1 Size LL08	Side 1 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5201LL-08	Product Weight 0.02 lbs

Product Questions & Answers 1

Product Questions & Answers

got an LL08 DIN tube with an M12 x 1.0 setup. is this the right tube nut or am i fixin to order the wrong one

Question by: Rod H on Oct 7, 2025, 5:52 PM

The key callouts on this nut are LL08 for the DIN tube size and an M12 x 1.0 female thread on the connection. If your tube and mating piece match those two specs, this is the correct tube nut.

Answer by: Customer Support on Oct 9, 2025, 6:31 AM
