Adaptall Din X Mbspp Adj Branch Tee 5159L-06-06-02

Specifications

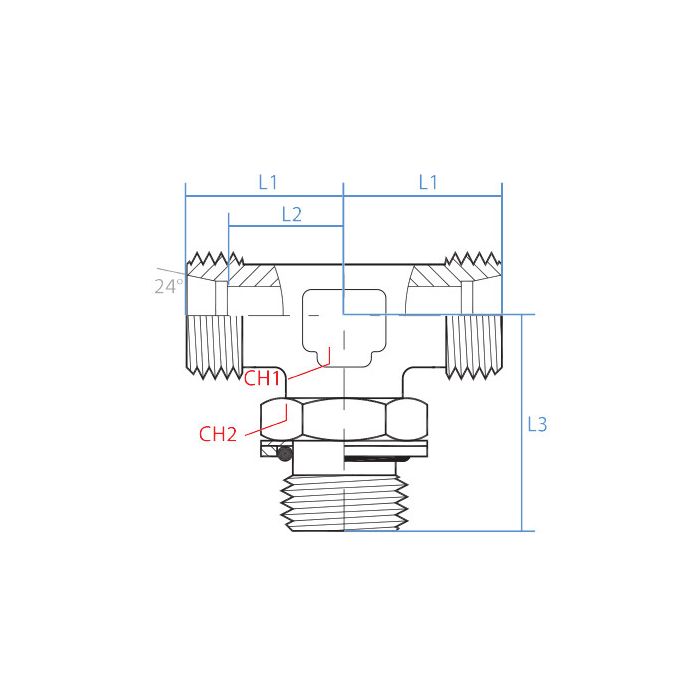

CH1 Width 12mm	CH2 Width 14mm	L1 Length 19mm	L2 Length 12mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size L06	Side 2 Type Din Tube	Side 3 Callout G 1/8 - 28	Side 3 Gender M	Side 3 Size 1/8"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5159L-06-06-02	Product Weight 0.09 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this tee fitting work with standard DIN fittings, or do I need something special?

Question by: Joyce R on Jun 28, 2025, 5:44 PM

This branch tee is constructed with DIN tube connections on two ports, so it's made to work directly with standard DIN fittings of the correct size (M12 x 1.5, L06 size). You shouldn't need any special adapters for those connections.

Answer by: Customer Support on Jun 29, 2025, 8:31 PM

i’ve got two M12 x 1.5 DIN tube lines and need to tee off to a little G 1/8-28 port, is that what this fitting is set up for

Question by: Curt S on Feb 26, 2026, 5:31 PM

For branching a metric DIN tube run into a BSPP-ported accessory, this tee matches that layout. It has M12 x 1.5 male DIN tube connections on two ports (L06 size) and a G 1/8-28 male BSPP connection on the branch.

Answer by: Customer Support on Feb 28, 2026, 6:39 AM

Got a DIN tube line I need to branch off to a small BSPP gauge port, this fitting set up for that kind of hookup?

Question by: Earl C on Jan 3, 2026, 11:33 AM

That's exactly what this one's built for. You've got two DIN tube ports running M12 x 1.5 male threads in L06 size, and the branch port is a G 1/8-28 male BSPP connection. So if your gauge, valve, or sensor is threaded for 1/8" BSPP female, this tee bridges that DIN line right over to it without any awkward adapter stacking.

Answer by: Customer Support on Jan 4, 2026, 5:08 PM
