Adaptall Din X F Din Swivel Run Tee 5390L-42

Specifications

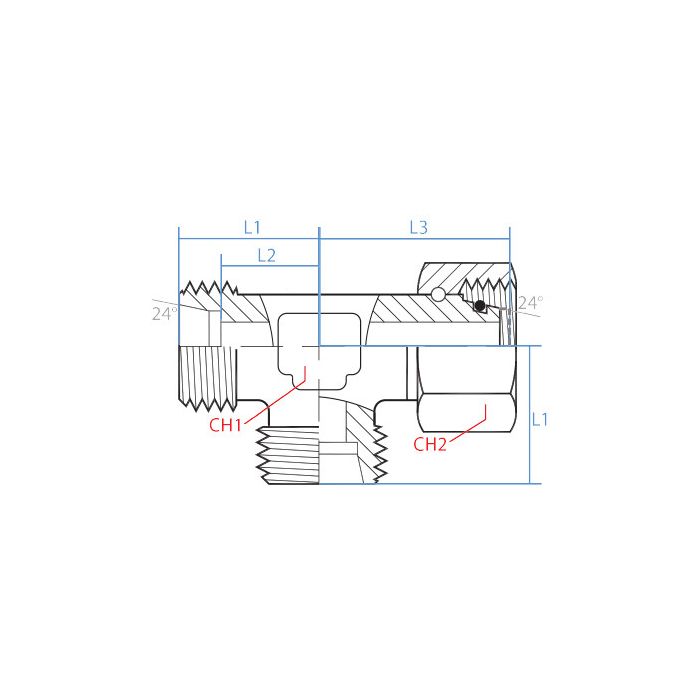

CH1 Width 48mm	CH2 Width 60mm	L1 Length 51mm	L2 Length 40mm	L3 Length 56mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M52 X 2.0	Side 1 Gender M	Side 1 Size L42	Side 1 Type Din Tube	Side 2 Callout M52 X 2.0	Side 2 Gender M	Side 2 Size L42	Side 2 Type Din Tube	Side 3 Callout M52 X 2.0	Side 3 Gender F	Side 3 Size L42	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390L-42	Product Weight 2.54 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to replace a tee on a DIN tube setup, are all three ends on this one M52 x 2.0 and L42?

Question by: Phil C on Mar 20, 2026, 9:23 AM

All three ports are DIN tube connections sized L42 with an M52 x 2.0 thread callout. Two ends are male and the third end is female.

Answer by: Customer Support on Mar 21, 2026, 11:55 AM

Both run ends on this thing are male M52 x 2.0 DIN tube, and the branch is female M52 x 2.0 DIN tube, that right?

Question by: Terry H on Nov 15, 2025, 4:23 PM

that's correct. The two run ends are both male M52 x 2.0 DIN tube connections sized at L42, and the branch port is a female M52 x 2.0 DIN tube, also L42. All three sides share the same thread callout and sizing, so the fitting is consistent across the board.

Answer by: Customer Support on Nov 16, 2025, 5:38 PM

What kind of material is this tee made from?

Question by: Joyce M on Dec 13, 2025, 9:21 AM

This tee fitting is made from steel, offering a robust connection point for hydraulic applications.

Answer by: Customer Support on Dec 14, 2025, 2:28 PM
