Din X F Din Swivel Branch Tee

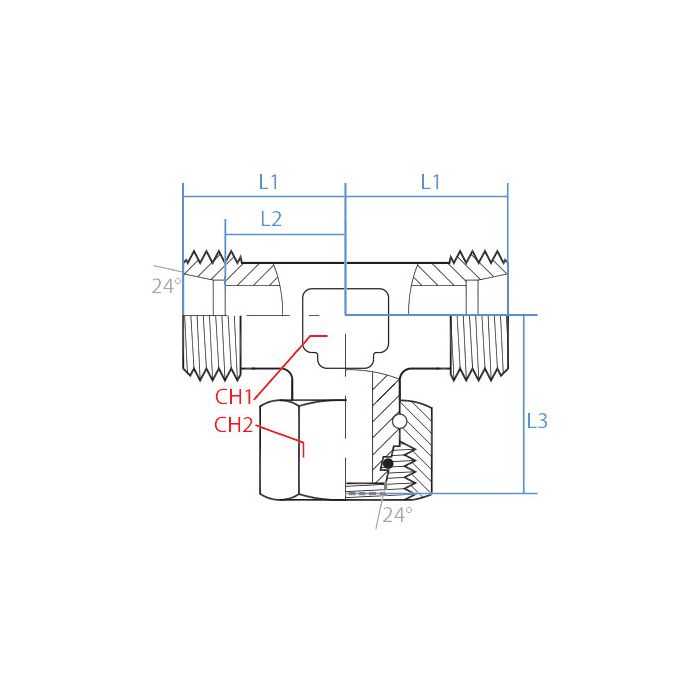

CH1 Width 12mm	CH2 Width 14mm	L1 Length 19mm	L2 Length 12mm	L3 Length 26mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size L06	Side 2 Type Din Tube	Side 3 Callout M12 X 1.5	Side 3 Gender F	Side 3 Size L06	Alternate Part Numbers Alternate Part Number 5387L-006	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5387L-06	Product Weight 0.11 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to tee off a line with M12 x 1.5 DIN tube ends, is this one male on two sides and female on the branch?

Question by: Floyd W on Aug 23, 2025, 10:21 AM

On this tee, Side 1 and Side 2 are male DIN tube ends with an M12 x 1.5 callout, and Side 3 is a female DIN tube end with the same M12 x 1.5 callout.

Answer by: Customer Support on Aug 24, 2025, 9:40 PM

Will this tee work with standard metric hydraulic tubing, or is it specific to some kind of proprietary fitting?

Question by: Lynn E on Dec 17, 2025, 5:56 PM

This Adaptall fitting is designed for use with standard DIN tube connections. It has a female DIN tube end on Side 3, and male DIN tube ends on Side 1 and Side 2, all with M12 x 1.5 callouts.

Answer by: Customer Support on Dec 19, 2025, 9:07 AM
