Adaptall Din Bulkhead Union 5040L-18

Specifications

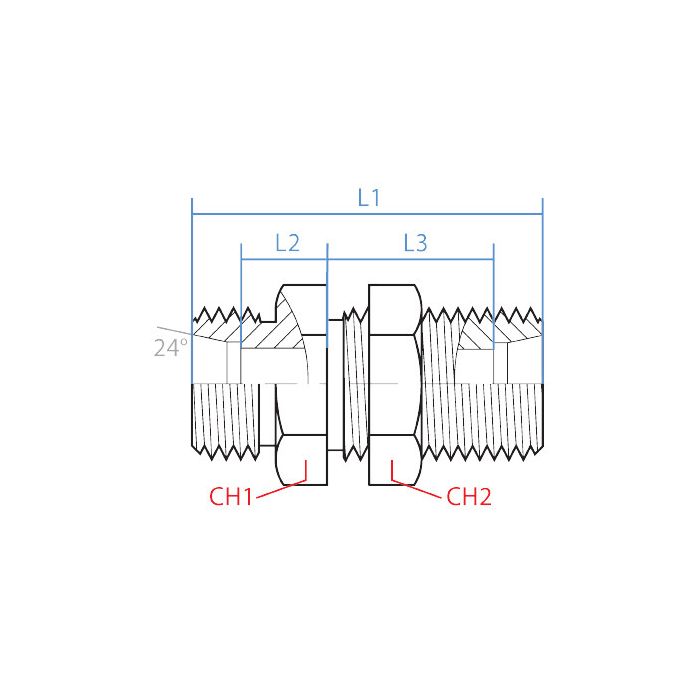

CH1 Width 32mm	CH2 Width 36mm	L1 Length 61mm	L2 Length 13.5mm	L3 Length 32.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size L18	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5040L-18	Product Weight 0.46 lbs

Product Questions & Answers 2

Product Questions & Answers

got a bulkhead pass-through spot on my panel. is this the straight union with m26 x 1.5 male ends on both sides?

Question by: Brent G on Oct 10, 2025, 2:45 PM

For a straight bulkhead union setup, this one matches that layout. It uses M26 x 1.5 male DIN tube connections on both sides, so it is set up to pass through a bulkhead and connect DIN tube fittings on each side.

Answer by: Customer Support on Oct 12, 2025, 6:15 AM

Both sides on this thing are M26 x 1.5 male DIN tube fittings, right? Just want to make sure before I go cutting into my line.

Question by: Harold P on Sep 17, 2025, 7:27 PM

Correct on both counts. Each side uses an M26 x 1.5 male DIN tube connection, so you're working with matching thread specs all the way through. The straight configuration means there's no angle or offset to account for, just a clean inline path from one side to the other. SKU 5040L-18 is the part number if you need to reference it for your records.

Answer by: Customer Support on Sep 18, 2025, 8:41 PM
