Adaptall Din Bulkhead Union Complete 5040L-15C

Specifications

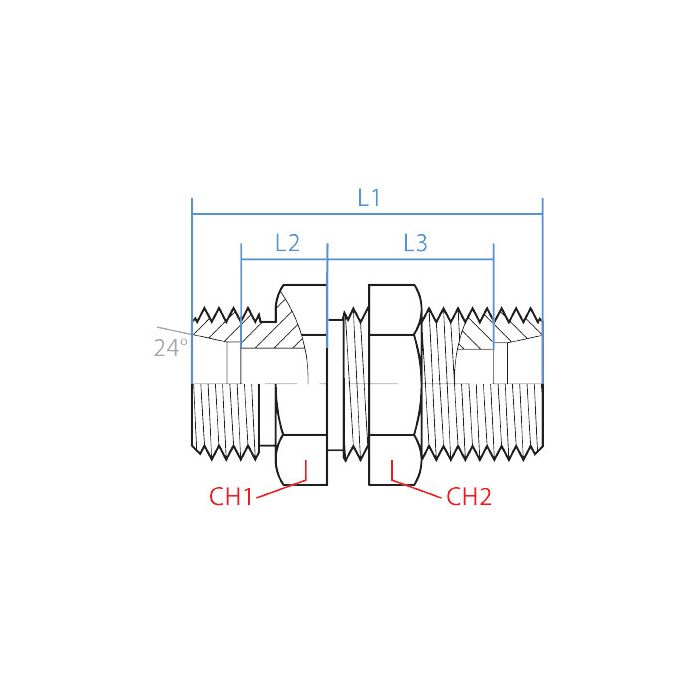

CH1 Width 27mm	CH2 Width 30mm	L1 Length 57mm	L2 Length 12mm	L3 Length 31mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5040L-15C	Product Weight 0.26 lbs

Product Questions & Answers 3

Product Questions & Answers

Both sides are M22 x 1.5 DIN tube, does that mean this thing goes straight through without any thread conversion?

Question by: Hugh P on Oct 19, 2025, 12:08 PM

Correct. Both ends are L15 DIN tube connections with M22 x 1.5 callouts, so there's no thread conversion happening here. It passes a single line straight through a panel or bulkhead, keeping the same connection type on each side. If you're trying to adapt between different thread types, this particular union wouldn't be the right fit for that job.

Answer by: Customer Support on Oct 21, 2025, 6:53 AM

got a bulkhead pass-through deal with DIN tube on both sides. Is this one the straight steel union with M22 x 1.5 both ends?

Question by: Ronnie M on Jul 15, 2025, 3:15 PM

For a straight bulkhead union in steel with DIN tube connections, this matches that setup. Both Side 1 and Side 2 are L15 DIN Tube with M22 x 1.5 male callouts.

Answer by: Customer Support on Jul 17, 2025, 6:24 AM

Wondering if this bulkhead union would hold up ok in an oily environment?

Question by: Shawn Y on Sep 24, 2025, 9:49 AM

Steel construction means it's durable enough to handle exposure to oil in hydraulic systems.

Answer by: Customer Support on Sep 25, 2025, 6:03 PM
