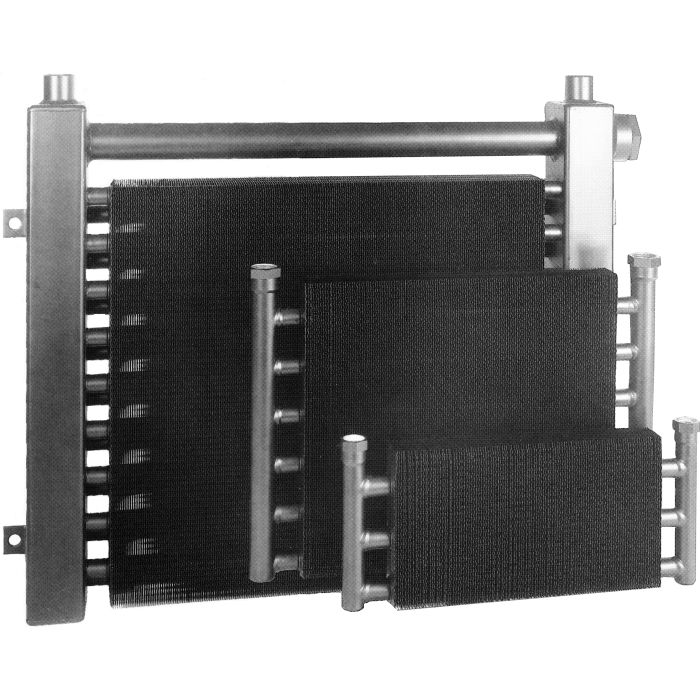

DH & DHR Series Air Cooled Mobile Heat Exchangers, Up To 300 PSI
Features |
High performance oil turbulators. Lightweight. Low cost. Optional internal by-pass valves eliminate piping and reduce costs. Heat removal to 175,000 BTU/Hr. Oil flows up to 150 GPM. NPT ports are standard (SAE Straight Thread ports are optional). |
Materials |
Copper tubes. Aluminum or steel fins. Aluminum turbulators. Copper manifolds and brass connections (models DH-051 - DH-447), Steel manifolds and steel connections (models DH-513 - DH670). |
Maximum Operating Temperature |
350°F. |
Pressure Rating |
300 PSI Operating. 300 PSI Test. |
Products
| Model Number | Bypass Spring | A | B | C | D | E | Ports | G | Qty Mtg Kits | Face Area | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DHR-249-1-1-30 | 30 | 18 | 19.75 | 18.73 | 24 | 22.88 | 3/4 NPT | 1.12 | 6 | 2.47 |
|
