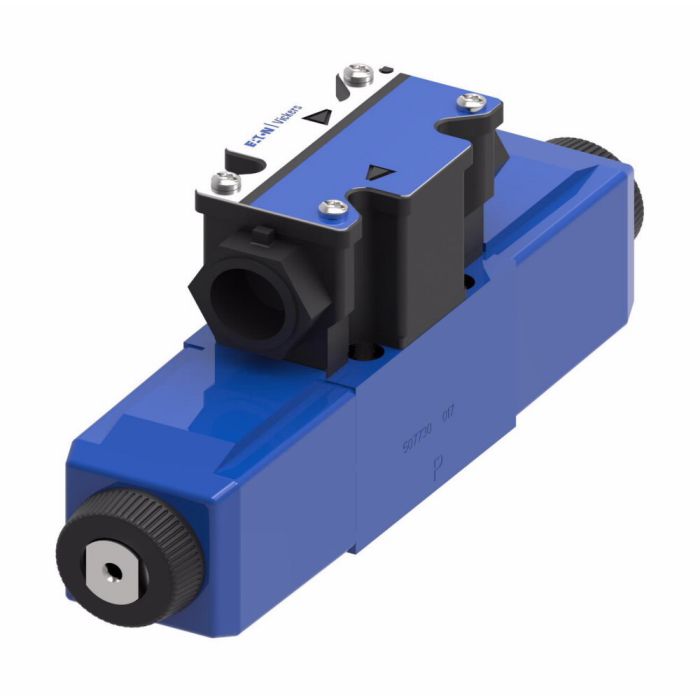

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Tandem Center, HP Performance, 110VAC50Hz 120VAC60Hz Lead wires Conduit box Coil.

Application Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)	Body Material Gray Iron	Check Valve No	Coil Rating 110VAC50Hz 120VAC60Hz	Coil Type Lead wires Conduit box	Diode No	Brand Danfoss (Power Solutions II LLC)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications	Fluid Cleanliness 19/17/14 micron	Interface ISO/DIS 4401-AB-03 D03	Leakage Standard	Manual Override Plain	Manual Override Option No	Performance Standard	Reducer Module No	Seal Material Buna-N	Special Features None	Spool Center Condition A Port and Double Offset sensing switch on B Port	Spool Monitor Switch None	Spring Arrangement C	Stage Single Stage	Supplier Part Number 02-145158	Switch Connector No	Type HP	Valve Mount Type Subplate/manifold mounted	Wattage 20	Product Weight 4.20 lbs	Alternate Part Numbers Alternate Part Number C1AC94, Alternate Part Number DG4V38CVMFWB661

Product Questions & Answers 3

Product Questions & Answers

We're running this on a press application at 4,500 psi. Does it need a steel subplate at that pressure or will a standard one hold up?

Question by: Howard H on Sep 12, 2025, 8:08 PM

Anything over 3,000 psi does require a steel subplate or manifold with this valve. At 4,500 psi you're well past that threshold, so a standard subplate wouldn't be the right call. The valve itself is rated up to 5,075 psi, so the valve body isn't the limiting factor there, just the mounting surface beneath it.

Answer by: Customer Support on Sep 14, 2025, 6:50 AM

got a D03 subplate setup already, is this one gonna bolt up or am i gonna be drilling and re-hydraulic connections

Question by: Kirk C on Feb 20, 2026, 2:48 PM

Fit is based on the ISO 4401 Size 03, NFPA D03 port interface and a subplate or manifold mount style, so it’s meant to mount on industry standard D03 surfaces without custom drilling or re-hydraulic connections.

Answer by: Customer Support on Feb 22, 2026, 8:10 AM

Can this valve handle different types of hydraulic fluids, or is it strictly for mineral oil?

Question by: Kent T on Oct 8, 2025, 9:48 AM

This valve is rated to handle mineral oil within a fluid temperature range of -4°F to 158°F. It can also handle water-based fluids, but the temperature range shifts to +50°F to 129°F.

Answer by: Customer Support on Oct 10, 2025, 7:57 AM
