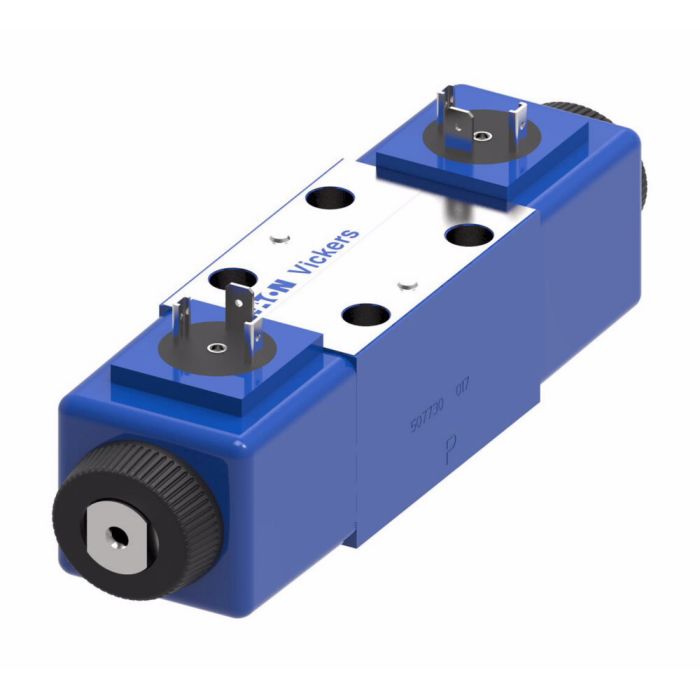

main product photo

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, STD Performance, 110VAC50Hz 120VAC60Hz DIN 43650 Coil.

Ask A Question
Application
Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body Material
Gray Iron
Check Valve
No
Coil Rating
110VAC50Hz 120VAC60Hz
Coil Type
DIN 43650
Design Code
60
Diode
No
Features
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications
Fluid Cleanliness
19/17/14 micron
Interface
ISO/DIS 4401-AB-03 D03
Leakage
Standard
Manual Override
Plain
Manual Override Option
No
Performance
Standard
Reducer Module
No
Seal Material
Buna-N
Special Features
None
Spool Center Condition
A Port and Double Offset sensing switch on B Port
Spool Monitor Switch
None
Spring Arrangement
C
Stage
Single Stage
Supplier Part Number
02-109686
Switch Connector
No
Tank Port Rating
100
Type
STD
Valve Mount Type
Subplate/manifold mounted
Wattage
30
Product Weight
4.00 lbs
Alternate Part Numbers
Alternate Part Number C1AC46, Alternate Part Number DG4V3S2CMUB560, Alternate Part Number DSDG4V3S2CMUB560
Product Questions & Answers 1

Product Questions & Answers

How about using this thing in a machine tool setup?
Question by: Patty C on Apr 25, 2025, 3:52 PM
This valve is indeed suitable for machine tool applications, along with uses like die casting, marine/offshore environments, metal processing, presses, paper manufacturing, test equipment, and turbine control systems.
Answer by: Customer Support on Apr 27, 2025, 8:08 AM
