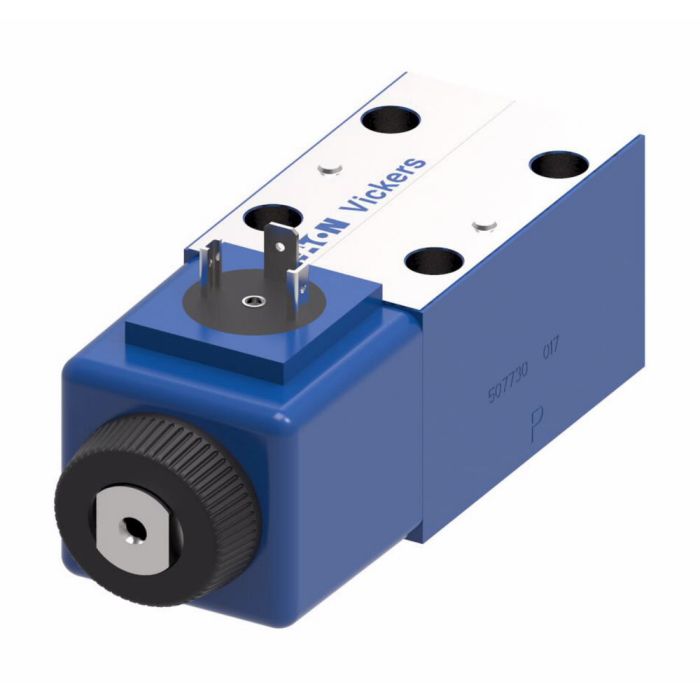

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 2-Position, Spring Offset End-to-End, Spool / Spring Code 2A, 220VAC50Hz 240VAC60Hz DIN 43650 Coil.

Actuation Identification Solenoid B	Application Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)	Body Material Gray Iron	Build Orientation Solenoid at B Port End	Check Valve No	Coil Rating 220VAC50Hz 240VAC60Hz	Coil Type DIN 43650	Design Code 60	Diode No	Features Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications	Fluid Cleanliness 19/17/14 micron	Interface ISO/DIS 4401-AB-03 D03	Leakage Standard	Manual Override Plain	Manual Override Option No	Performance Standard	Reducer Module No	Response Time 18-32 Milliseconds	Seal Material Buna-N	Special Features None	Spool Monitor Switch None	Spring Arrangement A	Stage Single Stage	Supplier Part Number 02-109642	Switch Connector No	Tank Port Rating 100	Type STD	Valve Mount Type Subplate/manifold mounted	Wattage 30	Product Weight 3.30 lbs	Alternate Part Numbers Alternate Part Number C1JP80, Alternate Part Number DG4V3S2AMUD560

Product Questions & Answers

Does this valve usually come with the connector? I don't see it listed as an included part.

Question by: Cheryl K on Aug 2, 2025, 1:57 PM

These valves require a separate DIN 43650 connector that's not included.

Answer by: Customer Support on Aug 4, 2025, 6:08 AM
