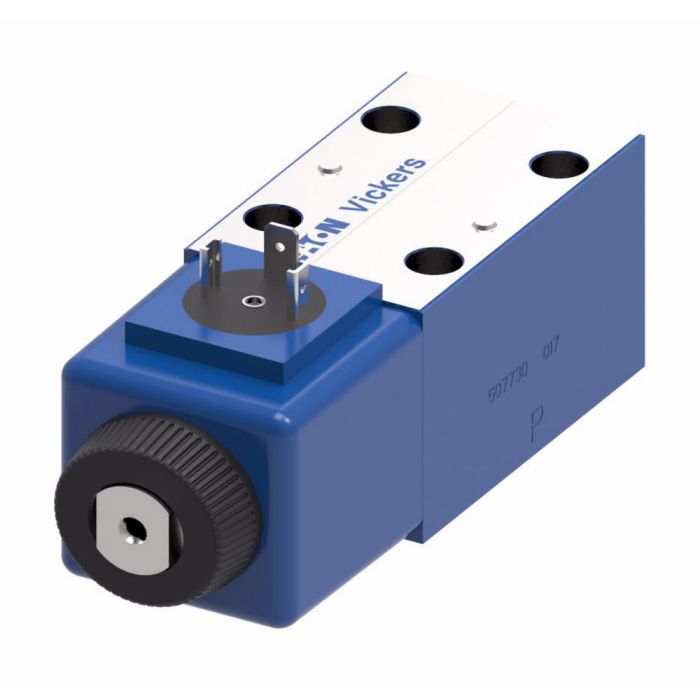

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 2-Position, Spring Offset End-to-End, Spool / Spring Code 2A, 110VAC50Hz 120VAC60Hz DIN 43650 Coil.

Actuation Identification Solenoid B	Application Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)	Body Material Gray Iron	Check Valve No	Coil Rating 110VAC50Hz 120VAC60Hz	Coil Type DIN 43650	Design Code 60	Diode No	Features Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications	Fluid Cleanliness 19/17/14 micron	Interface ISO/DIS 4401-AB-03 D03	Leakage Standard	Manual Override Plain	Manual Override Option No	Performance Standard	Reducer Module No	Seal Material Buna-N	Special Features None	Spool Center Condition B Port End	Spool Monitor Switch None	Spring Arrangement A	Stage Single Stage	Supplier Part Number 02-109632	Switch Connector No	Tank Port Rating 100	Type STD	Valve Mount Type Subplate/manifold mounted	Wattage 30	Product Weight 3.30 lbs	Alternate Part Numbers Alternate Part Number C1AC44, Alternate Part Number DG4V3S2AMUB560

Product Questions & Answers 3

Product Questions & Answers

trying to swap out a valve on a D03 manifold, is this one the right style for that

Question by: Jimmy J on Nov 3, 2025, 12:32 PM

The crucial information about compatibility is embedded in the name: it’s a subplate or manifold mount valve tailored for NFPA size D03. If your system uses a D03 subplate or manifold pattern, this valve matches that configuration.

Answer by: Customer Support on Nov 4, 2025, 2:59 PM

On the electrical side, what coil are we talkin here, and is it set up for 60hz power

Question by: Eddie E on Jul 5, 2025, 4:52 PM

This coil is designed in the DIN 43650 style and is suitable for 110VAC at 50Hz and 120VAC at 60Hz. It'll work just fine with the standard 60Hz 120VAC control power, and it also has the 50Hz 110VAC rating.

Answer by: Customer Support on Jul 7, 2025, 4:23 PM

this valve says its nfpa d03 size, but will it swap right in for my old one without mods

Question by: Kirk C on Dec 10, 2025, 2:19 PM

The DG4V-3(S) series valve is compatible with subplate or manifold mounts that adhere to NFPA D03 standards. If your current setup is the same, it should fit perfectly. Just ensure that the spool code and coil voltage match your requirements.

Answer by: Customer Support on Dec 12, 2025, 4:02 PM
