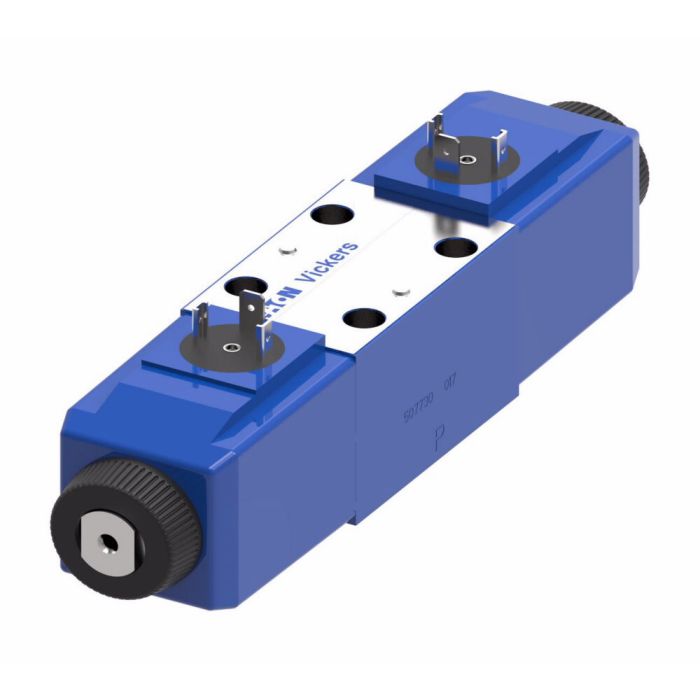

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, STD Performance, 12VDC DIN 43650 Coil.

Application Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)	Body Material Gray Iron	Check Valve No	Coil Rating 12VDC	Coil Type DIN 43650	Design Code 60	Diode No	Features Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications	Fluid Cleanliness 19/17/14 micron	Interface ISO/DIS 4401-AB-03 D03	Leakage Standard	Manual Override Plain	Manual Override Option No	Performance Standard	Reducer Module No	Seal Material Buna-N	Special Features None	Spool Center Condition A Port and Double Offset sensing switch on B Port	Spool Monitor Switch None	Spring Arrangement C	Stage Single Stage	Supplier Part Number 02-109055	Switch Connector No	Tank Port Rating 100	Type STD	Valve Mount Type Subplate/manifold mounted	Wattage 30	Product Weight 4.80 lbs	Alternate Part Numbers Alternate Part Number C1AC37, Alternate Part Number DG4V3S2CMUG560, Alternate Part Number DSDG4V3S2CMUG560

Product Questions & Answers 1

Product Questions & Answers

What kind of hydraulic fluid should I be using in this valve? Just want to make sure I don't mess anything up.

Question by: Denise C on Dec 28, 2025, 1:29 PM

This valve is designed to work with mineral oil at temperatures between -4°F and 158°F. It can also handle water-based fluids between +50°F and +129°F.

Answer by: Customer Support on Dec 30, 2025, 6:15 AM
