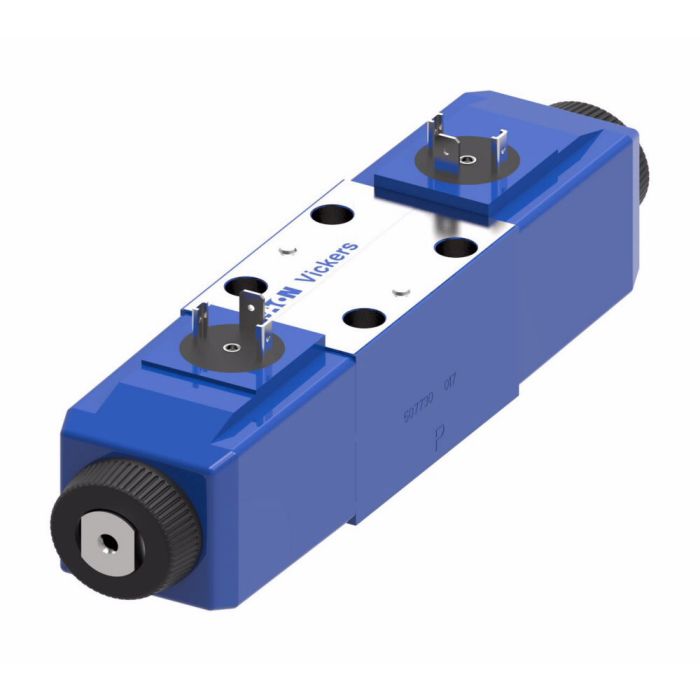

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, STD Performance, 24VDC DIN 43650 Coil.

Application Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)	Body Material Gray Iron	Check Valve No	Coil Rating 24VDC	Coil Type DIN 43650	Design Code 60	Diode No	Features Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications	Fluid Cleanliness 19/17/14 micron	Interface ISO/DIS 4401-AB-03 D03	Leakage Standard	Manual Override Plain	Manual Override Option No	Performance Standard	Reducer Module No	Seal Material Buna-N	Special Features None	Spool Center Condition A Port and Double Offset sensing switch on B Port	Spool Monitor Switch None	Spring Arrangement C	Stage Single Stage	Supplier Part Number 02-109025	Switch Connector No	Tank Port Rating 100	Type STD	Valve Mount Type Subplate/manifold mounted	Wattage 30	Product Weight 4.80 lbs	Alternate Part Numbers Alternate Part Number C1AC31, Alternate Part Number DG4V3S2CMUH560, Alternate Part Number DSDG4V3S2CMUH560

Product Questions & Answers

Trying to swap out a valve on a manifold, is this one the NFPA D03 subplate style?

Question by: Stan P on Jan 30, 2026, 12:08 PM

This valve fits the NFPA Size D03 pattern and is made for mounting on a manifold or subplate, tailored for D03 configurations.

Answer by: Customer Support on Feb 2, 2026, 4:33 PM

on the center position, does it block flow or does it float?

Question by: Sheila H on Feb 3, 2026, 4:36 PM

The spring-centered middle position delivers a closed center that blocks flow, instead of allowing an open or floating condition.

Answer by: Customer Support on Feb 6, 2026, 12:04 PM

Power wise, what coil is on it, and is it the DIN plug type?

Question by: Lyle B on Feb 10, 2026, 9:24 PM

It comes with a 24VDC solenoid coil and employs a DIN 43650 type connector for electrical connections.

Answer by: Customer Support on Feb 12, 2026, 12:58 PM

Can that DG4V-3 solenoid valve be mounted directly onto my existing D03 manifold setup?

Question by: Pete C on Nov 4, 2025, 7:47 PM

This valve is compatible with subplates or manifolds that adhere to NFPA size D03 standards, so it should fit your current configuration well.

Answer by: Customer Support on Nov 6, 2025, 3:44 PM

Part Number	Model Number	Type	Coil Rating	Coil Type	Features
529760	DG4V-3-2C-M-U-H7-60	HP	24VDC	DIN 43650	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
859161	DG4V-3-2C-M-U-B6-60	HP	110VAC50Hz 120VAC60Hz	DIN 43650	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
859172	DG4V-3-2C-M-U-D6-60	HP	220VAC50Hz 240VAC60Hz	DIN 43650	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
02-109025	DG4V-3S-2C-M-U-H5-60	STD	24VDC	DIN 43650	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
