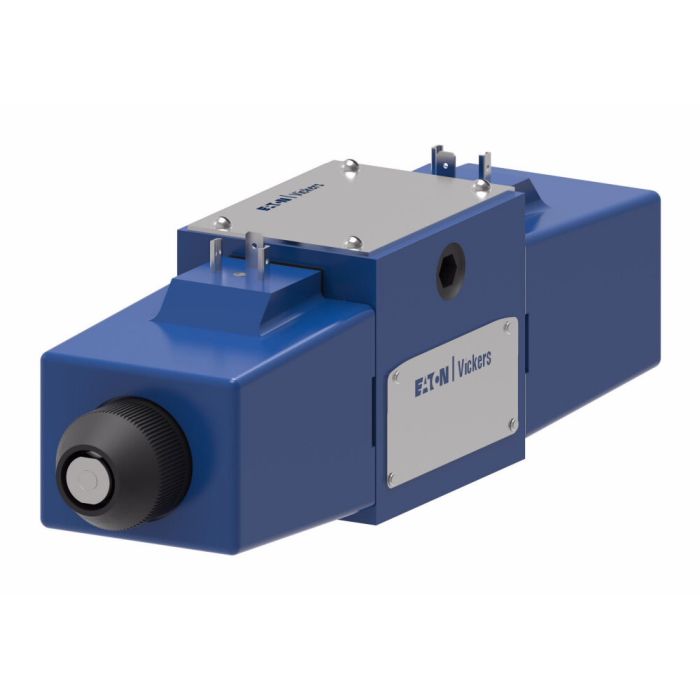

DG4S4-01 Series Subplate/Manifold Mount NFPA Size D05 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, 24VDC DIN 43650 Coil.

Application Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)	Body Material Gray Iron	Check Valve No	Coil Rating 24VDC	Coil Type DIN 43650	Design Code 60	Diode No	Brand Danfoss (Power Solutions II LLC)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications	Fluid Cleanliness 19/17/14 micron	Interface ISO4401-AC-05-4-A/NFPA D05	Leakage Standard	Manual Override None	Manual Override Option No	Reducer Module No	Seal Material Buna-N	Special Features None	Spool Center Condition A Port and Double Offset sensing switch on B Port	Spool Monitor Switch None	Spring Arrangement C	Stage Single Stage	Supplier Part Number 879239	Switch Connector No	Valve Mount Type Subplate/manifold mounted	Wattage 42	Product Weight 13.58 lbs	Alternate Part Numbers Alternate Part Number C1HJ85, Alternate Part Number DG4S4012CUH60

Product Questions & Answers 2

Product Questions & Answers

got a D05 subplate setup already. is this valve gonna bolt right up or am i chasing adapters

Question by: Rick C on Apr 27, 2025, 8:17 AM

Fit is based on the ISO4401-AC-05-4-A interface, which is the same pattern used for NFPA D05 subplate and manifold mounting. It’s made to mount on those industry standard surfaces, so you should not need an adapter as long as your existing surface is a D05 pattern.

Answer by: Customer Support on Apr 28, 2025, 9:04 AM

Wondering if this valve can handle hydraulic oil okay, or is it just for special fluids?

Question by: Steve T on Jan 26, 2026, 7:26 PM

Ports P, A, and B are rated to 3600 PSI when you're running petroleum oil. For high water base fluids, that drops to 1000 PSI.

Answer by: Customer Support on Jan 28, 2026, 1:27 PM

Similar Products

Part Number	Model Number	Coil Rating	Coil Type	Wiring Housing	Features	Price	Buy Now
02-119593	DG4S4-012C-G-60	12VDC	Lead wires	None	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
879239	DG4S4-012C-U-H-60	24VDC	DIN 43650	--	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
