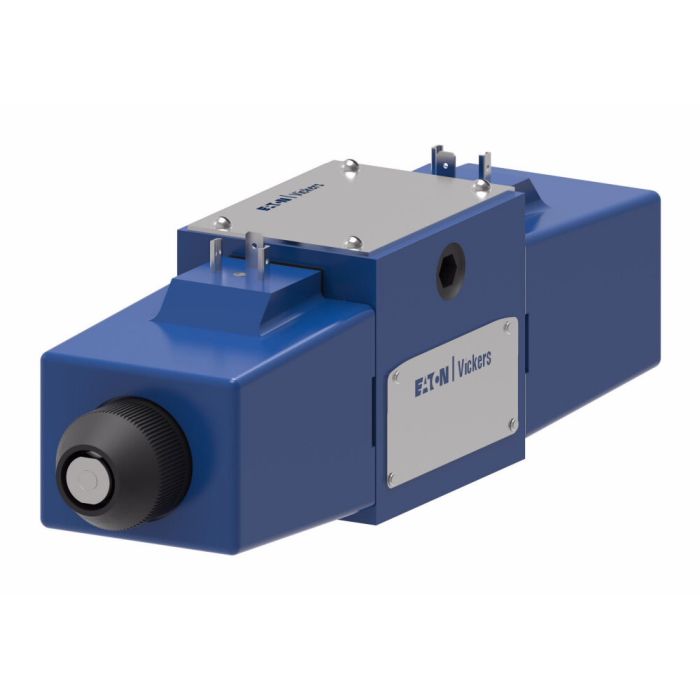

main product photo

DG4S4-01 Series Subplate/Manifold Mount NFPA Size D05 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Tandem Center, 24VDC DIN 43650 Coil.

Ask A Question
Application
Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body Material
Gray Iron
Check Valve
No
Coil Rating
24VDC
Coil Type
DIN 43650
Design Code
60
Diode
No
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications
Fluid Cleanliness
19/17/14 micron
Interface
ISO4401-AC-05-4-A/NFPA D05
Leakage
Standard
Manual Override
None
Manual Override Option
No
Reducer Module
No
Seal Material
Buna-N
Special Features
None
Spool Center Condition
A Port and Double Offset sensing switch on B Port
Spool Monitor Switch
None
Spring Arrangement
C
Stage
Single Stage
Supplier Part Number
02-126361
Switch Connector
No
Valve Mount Type
Subplate/manifold mounted
Wattage
42
Product Weight
13.50 lbs
Alternate Part Numbers
Alternate Part Number C1JT44, Alternate Part Number DG4S4018CUH60
Product Questions & Answers 1

Product Questions & Answers

got an NFPA D05 manifold already. is this one gonna bolt up and plug in without me reworking a bunch of stuff?
Question by: Sheila R on Sep 20, 2025, 8:13 PM
It uses the ISO4401-AC-05-4-A and NFPA D05 interface, and it is a subplate or manifold mount style valve. On the electrical side it is a 24VDC coil with a DIN 43650 connector, so it matches that style of plug.
Answer by: Customer Support on Sep 22, 2025, 6:13 AM
