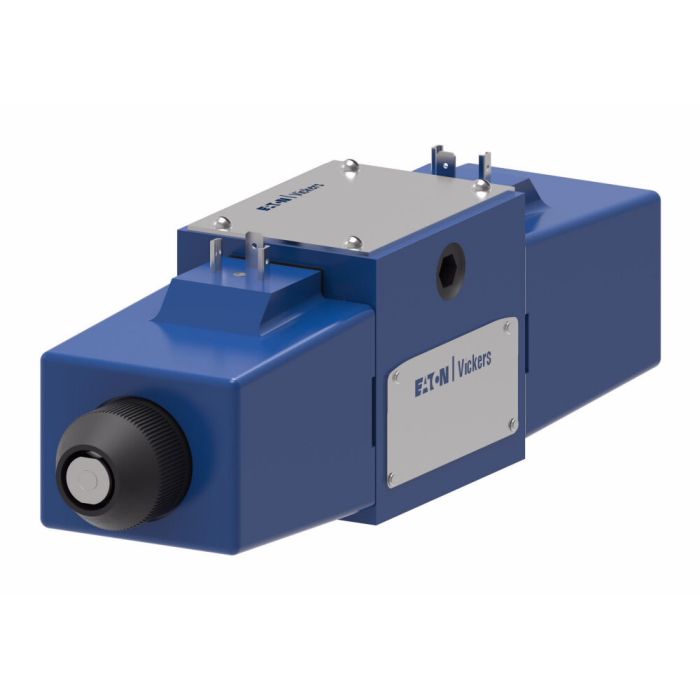

main product photo

DG4S4-01 Series Subplate/Manifold Mount NFPA Size D05 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Tandem Center, 110VAC50Hz 120VAC60Hz DIN 43650 Coil.

Ask A Question
Application
Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body Material
Gray Iron
Check Valve
No
Coil Rating
110VAC50Hz 120VAC60Hz
Coil Type
DIN 43650
Design Code
60
Diode
No
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications
Fluid Cleanliness
19/17/14 micron
Interface
ISO4401-AC-05-4-A/NFPA D05
Leakage
Standard
Manual Override
None
Manual Override Option
No
Reducer Module
No
Seal Material
Buna-N
Special Features
None
Spool Center Condition
A Port and Double Offset sensing switch on B Port
Spool Monitor Switch
None
Spring Arrangement
C
Stage
Single Stage
Supplier Part Number
02-119859
Switch Connector
No
Valve Mount Type
Subplate/manifold mounted
Wattage
35
Product Weight
10.50 lbs
Alternate Part Numbers
Alternate Part Number C1JP86, Alternate Part Number DG4S4018CUB60
Product Questions & Answers 3

Product Questions & Answers

I have a D05 subplate manifold. Will this valve fit right on it?
Question by: Marvin T on Feb 8, 2026, 9:28 AM
The critical point for compatibility is the mounting style and dimensions. This valve is a subplate or manifold-mounted unit in NFPA D05 size, which aligns with D05 subplate or manifold patterns.
Answer by: Customer Support on Feb 11, 2026, 2:05 PM
What's the coil voltage and plug type for the power on this?
Question by: Johnny W on Nov 21, 2025, 5:30 PM
It operates on an AC coil voltage of 110VAC at 50Hz or 120VAC at 60Hz, utilizing a DIN 43650 coil plug.
Answer by: Customer Support on Nov 22, 2025, 11:03 AM
Could this solenoid valve be used as a substitute for one on my old hydraulic press setup with a D05 mount?
Question by: Earl M on Jun 4, 2025, 10:59 AM
Since it's designed for NFPA D05 subplate or manifold mount, it should fit your setup if the press utilizes the same standard. Make sure to verify the coil voltage is either 110VAC 50Hz or 120VAC 60Hz with a DIN 43650 connector to match your system.
Answer by: Customer Support on Jun 7, 2025, 11:13 AM
