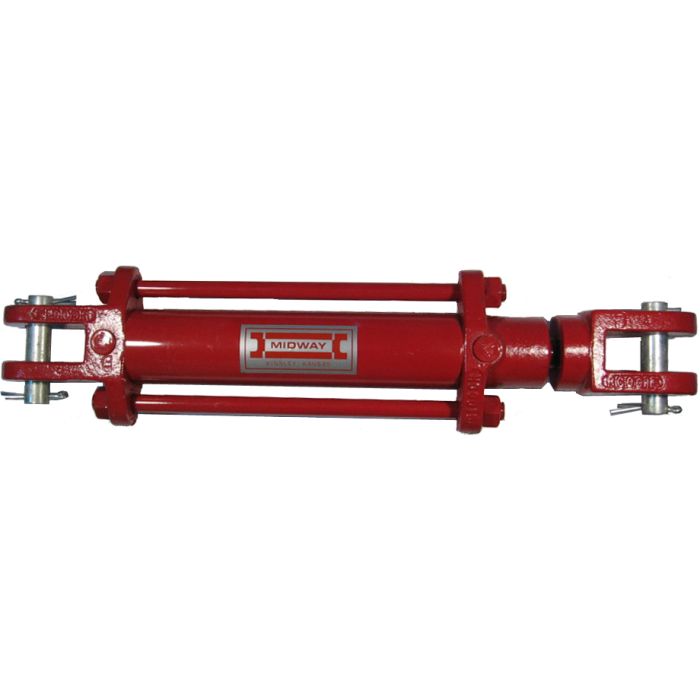

DA Series Tie Rod Hydraulic Cylinders, Up To 2500 PSI
Features |
Ductile iron rod clevis, base clevis and cylinder head. Aluminum alloy piston with o-ring seal and backup rings. Self locking piston nut. Metal clad rod wiper. Ground & polished chrome plated rod. Precision honed cylinder tube. High tensile steel tie rods. Zinc plated clevis pins and clips. |
Maximum Operating Pressure |
2500 PSI. |
Products
| Model Number | Bore | Stroke | Rod Diameter | Ports | Pin to Pin Retracted | Pin to Pin Extended | Pin Diameter | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| 1504TR | 1.5 | 4 | 0.75 | 1/4 NPT | 13.25 | 17.25 | 0.625 |
|
|
| 1506TR | 1.5 | 6 | 0.75 | 1/4 NPT | 15.25 | 21.25 | 0.625 |
|
|
| 1508TR | 1.5 | 8 | 0.75 | 1/4 NPT | 17.25 | 25.25 | 0.625 |
|
|
| 1512TR | 1.5 | 12 | 0.75 | 1/4 NPT | 21.25 | 33.25 | 0.625 |
|
