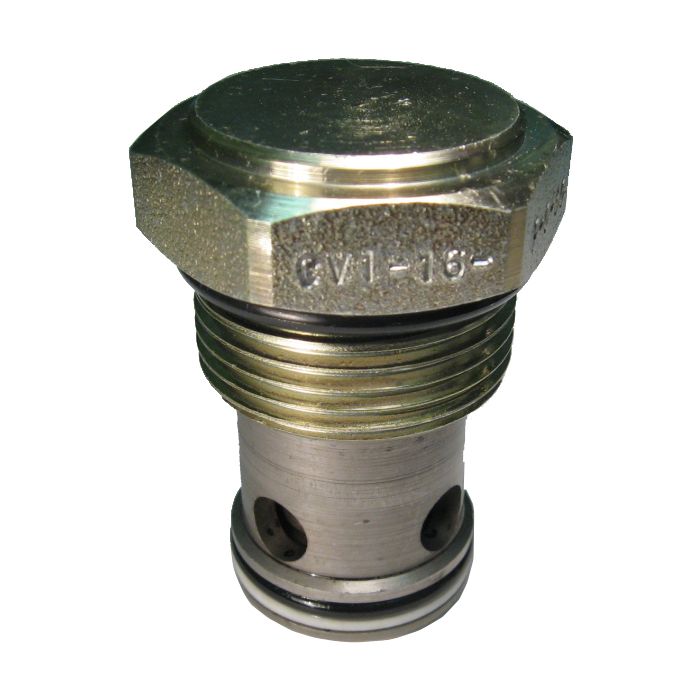

CV1-16 Series Cartridge Check Valves, Up To 3000 PSI & 40 GPM
Application |
Used in hydraulic applications to allow free flow of fluid in one direction only. |
Cartridge |
Model CV1-16*, sold separately. |
Flow Rating |
40 GPM. |
Housing |
Cavity size C-16-2, sold separately, see |
Maximum Operating Pressure |
3000 PSI. |
Recommended Filtration |
ISO 4406 Cleanliness Level 18/16/13 or cleaner. |
Temperature Range |
-40°F to 248°F (Extreme Limits). |
Products
| Part Number | Model Number | Cracking Pressure (psi) | Seal Material | Price | Buy Now |
|---|---|---|---|---|---|
| 565973 | CV1-16-P-0-20 | 20 | Buna-N |
|
