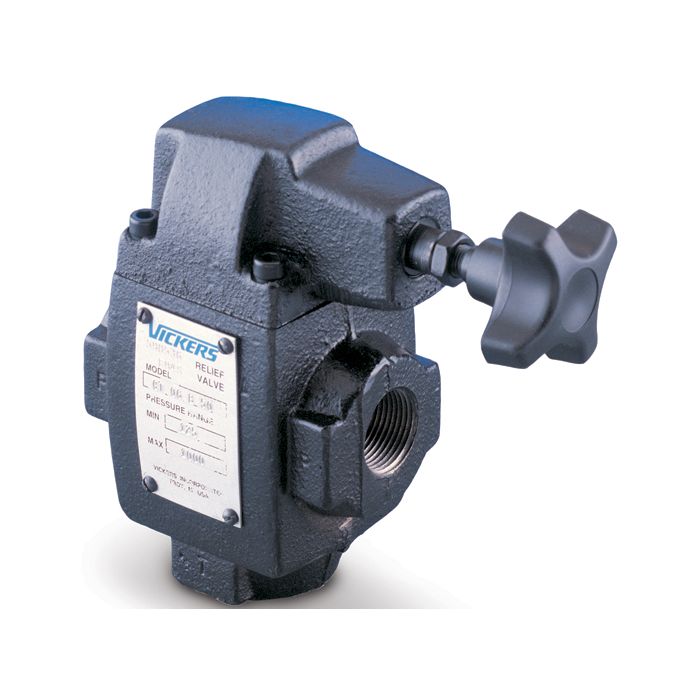

CT & CS Series 3-Port Pilot-Operated Relief Valves, Up To 120 GPM & 3000 PSI

Adjustment Style	Adjustment knob with locking nut.
Features	In-line mounting. Gauge port. Ventable. Smooth and quiet. Continuous duty.
Maximum Flow Rate	Standard Models: 60 gpm (3/4 & -12 size), 120 gpm (1-1/4 & -20 size). High Flow Models: 90 gpm (3/4 & -12 size), 180 gpm (1-1/4 & -20 size).
Maximum Operating Pressure	3000 PSI.

Products

Part Number	Model Number	Adjustable Range	Inlet Port	Outlet Port	Gauge Port	Vent Port	Seal Material	A	B
590283	CT-10-F-30	1500-3000	1-1/4 NPT	1-1/4 NPT	7/16-20 St.Thd. O-Ring	9/16-18 St.Thd. O-Ring	Buna-N	6.18	4.88
590536	CT-06-B-50	125-1000	3/4 NPT	3/4 NPT	7/16-20 St.Thd. O-Ring	9/16-18 St.Thd. O-Ring	Buna-N	5.64	3.76
590538	CT-06-C-50	500-2000	3/4 NPT	3/4 NPT	7/16-20 St.Thd. O-Ring	9/16-18 St.Thd. O-Ring	Buna-N	5.64	3.76
590540	CT-06-F-50	1500-3000	3/4 NPT	3/4 NPT	7/16-20 St.Thd. O-Ring	9/16-18 St.Thd. O-Ring	Buna-N	5.64	3.76
