Code 62 Split Flange Kit, 2.53 (-24) Flange Head, Up to 5800.00 PSI

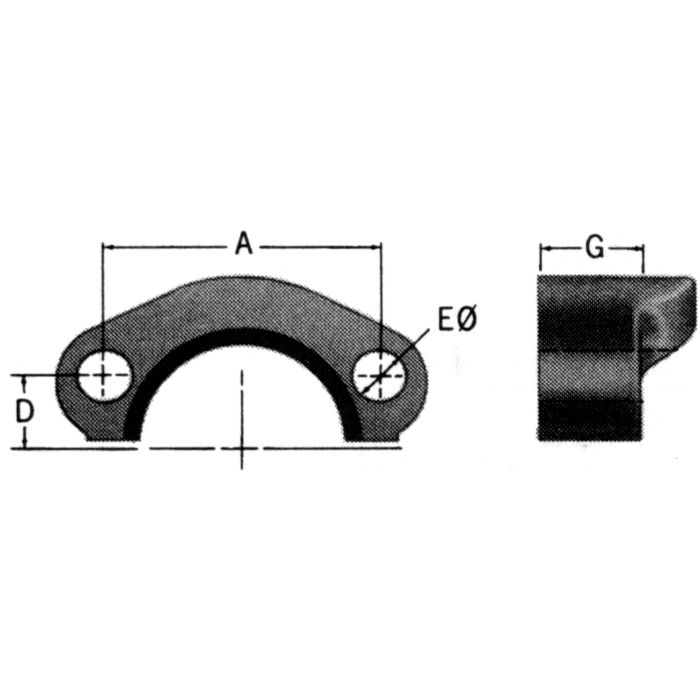

A 3.12	D 0.72	Dash Size -24	E 0.67	Brand Stauff-Special Quotes	Brand Stauff Corporation	Pack Size 1.00	UOM EA	Flange Head Dia. 2.53	G 1.18	Maximum Operating Pressure 5800	Supplier Part Number STNA80401	Thread Sealant No	Torque Rating 1400-1600 lb-in	Torque Rating 1400-1600 lb-in	Product Weight 3.00 lbs	Alternate Part Numbers Alternate Part Number 1730001702, Alternate Part Number C1MM23, Alternate Part Number DB-605-HALF, Alternate Part Number DB-605-HALF (PSF6-24), Alternate Part Number DB-605-HALF-W66, Alternate Part Number DB605HALF, Alternate Part Number DB605HALFW66, Alternate Part Number PSF6-24

Product Questions & Answers 1

Product Questions & Answers

torque spec on the bolts for this flange kit -- what are we looking at?

Question by: Rusty M on Nov 29, 2025, 8:08 AM

Grade 8 hex bolts are included in the kit, and the specified torque range runs from 1400 to 1600 lb-in. That's a fairly tight window, so staying within it matters for maintaining a proper seal at operating pressure. Four bolts and four lock washers come in the box along with the two flange halves and the O-ring, so you've got everything needed to torque it down correctly without sourcing hardware separately.

Answer by: Customer Support on Dec 1, 2025, 6:27 AM
