Code 62 Split Flange Kit, 1.88 (-16) Flange Head, Up to 6000.00 PSI

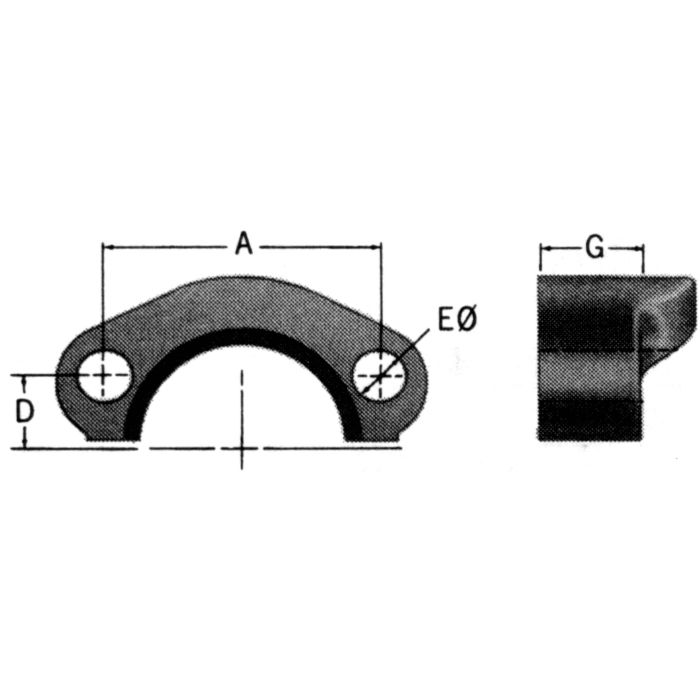

A 2.25	D 0.55	Dash Size -16	E 0.50	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Size 1 1	End Type 1 Flanged	Flange Head Dia. 1.88	G 0.94	Maximum Operating Pressure 6000	Minimum Working Temperature -40	Supplier Part Number FF595-16	Thread Sealant No	Torque Rating 500-600 lb-in	Torque Rating 500-600 lb-in	Product Weight 1.98 lbs	Alternate Part Numbers Alternate Part Number C1HE88

Product Questions & Answers 1

Product Questions & Answers

Got a hydraulic line running at 5800 PSI on a big press setup, this flange kit rated to handle that kind of pressure long term?

Question by: Pete A on Aug 26, 2025, 8:55 PM

At 5800 PSI you're well within the rated ceiling here. The kit is built for a maximum operating pressure of 6000 PSI, so you've got some headroom above your working pressure. The components are zinc plated with a yellow chromate finish, which helps hold up against corrosion in demanding shop environments. Just make sure you're hitting the torque spec on the bolts, which runs 500 to 600 lb-in, and you'll get a reliable, leak-free connection.

Answer by: Customer Support on Aug 28, 2025, 6:06 AM

Similar Products

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	A	D	E	G
16SFXO	1.88	-16	6000	500-600 lb-in	2.25	0.55	0.5	0.94
20SFXO	2.12	-20	6000	750-900 lb-in	2.62	0.62	0.6	1.06
12SFXO	1.63	-12	6000	300-400 lb-in	2	0.47	0.42	0.75
24SFXO	2.5	-24	6000	1400-1600 lb-in	3.12	0.72	0.66	1.19
FF595-16	1.88	-16	6000	500-600 lb-in	2.25	0.55	0.5	0.94
