Code 62 Split Flange Kit, 2.50 (-24) Flange Head, Up to 6000.00 PSI

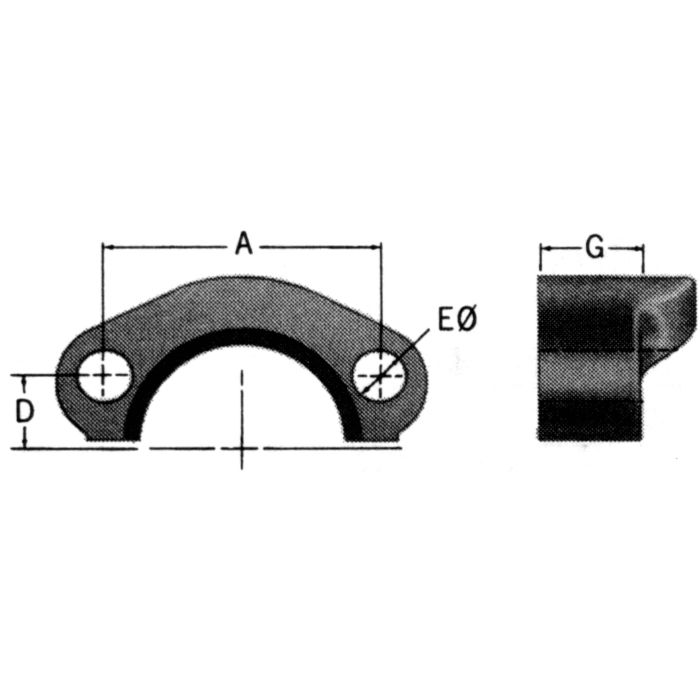

A 3.12	D 0.72	Dash Size -24	E 0.66	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	Flange Head Dia. 2.50	G 1.19	Maximum Operating Pressure 6000	Supplier Part Number 24SFXO	Thread Sealant No	Torque Rating 1400-1600 lb-in	Torque Rating 1400-1600 lb-in	Product Weight 4.11 lbs	Alternate Part Numbers Alternate Part Number C1BG73, Alternate Part Number MI-00390498, Alternate Part Number MINO-00054F82634

Product Questions & Answers

What size is the flange head on this kit? Just wanna make sure it'll fit my setup.

Question by: Frank H on Jul 9, 2025, 11:45 AM

The flange head diameter measures 2.5 inches, which should integrate seamlessly into various industrial applications.

Answer by: Customer Support on Jul 11, 2025, 10:04 AM

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	A	D	E	G
16SFXO	1.88	-16	6000	500-600 lb-in	2.25	0.55	0.5	0.94
20SFXO	2.12	-20	6000	750-900 lb-in	2.62	0.62	0.6	1.06
12SFXO	1.63	-12	6000	300-400 lb-in	2	0.47	0.42	0.75
24SFXO	2.5	-24	6000	1400-1600 lb-in	3.12	0.72	0.66	1.19
FF595-16	1.88	-16	6000	500-600 lb-in	2.25	0.55	0.5	0.94
