Code 62 Split Flange Kit, 2.12 (-20) Flange Head, Up to 6000.00 PSI

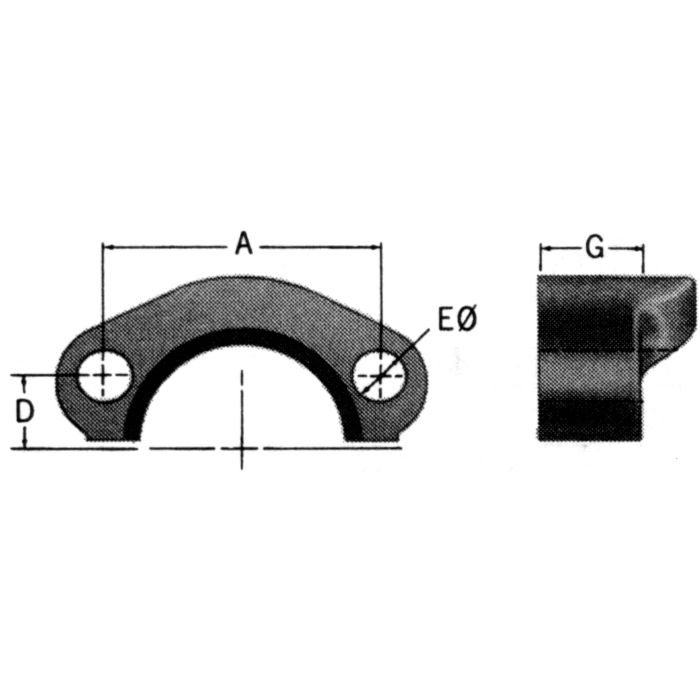

A 2.62	D 0.62	Dash Size -20	E 0.60	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	Flange Head Dia. 2.12	G 1.06	Maximum Operating Pressure 6000	Supplier Part Number 20SFXO	Thread Sealant No	Torque Rating 750-900 lb-in	Torque Rating 750-900 lb-in	Product Weight 2.40 lbs	Alternate Part Numbers Alternate Part Number 20SFX0, Alternate Part Number C1BB69, Alternate Part Number MI-00390495, Alternate Part Number MINO-00054F82632

Product Questions & Answers

trying to replace a split flange kit on a -20 line, is this the one with the 2.12 flange head?

Question by: Dustin R on Aug 28, 2025, 9:38 PM

Match it up by the dash size and flange head diameter. This kit is a -20 with a 2.12 inch flange head, and it’s a Code 62 split flange kit.

Answer by: Customer Support on Aug 30, 2025, 12:35 PM

Will this flange kit work with hydraulic fluid that's petroleum-based?

Question by: Howard J on Dec 8, 2025, 4:38 PM

This kit's Buna-N O-ring is compatible with both petroleum and water-based hydraulic fluids.

Answer by: Customer Support on Dec 10, 2025, 6:14 AM

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	A	D	E	G
16SFXO	1.88	-16	6000	500-600 lb-in	2.25	0.55	0.5	0.94
20SFXO	2.12	-20	6000	750-900 lb-in	2.62	0.62	0.6	1.06
12SFXO	1.63	-12	6000	300-400 lb-in	2	0.47	0.42	0.75
24SFXO	2.5	-24	6000	1400-1600 lb-in	3.12	0.72	0.66	1.19
FF595-16	1.88	-16	6000	500-600 lb-in	2.25	0.55	0.5	0.94
