Code 62 Split Flange Kit, 1.88 (-16) Flange Head, Up to 6000.00 PSI

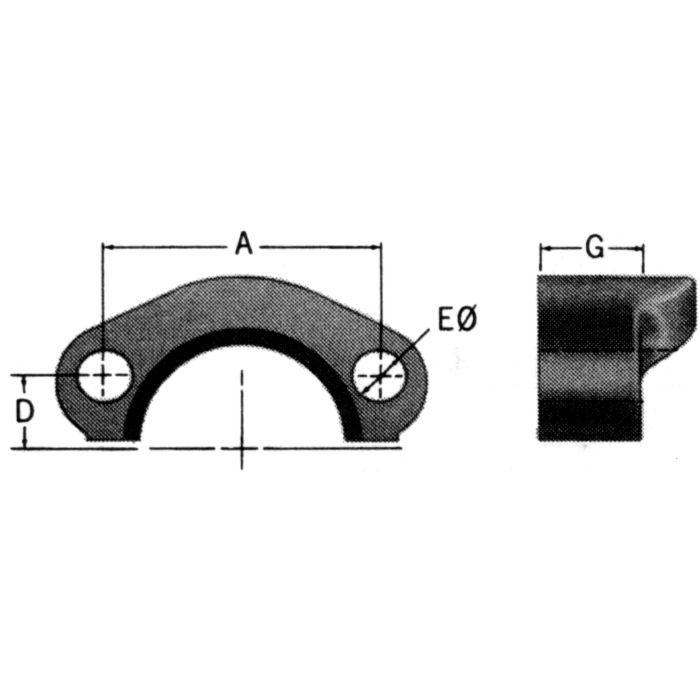

A 2.25	D 0.55	Dash Size -16	E 0.50	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	Flange Head Dia. 1.88	G 0.94	Maximum Operating Pressure 6000	Supplier Part Number 16SFXO	Thread Sealant No	Torque Rating 500-600 lb-in	Torque Rating 500-600 lb-in	Product Weight 1.54 lbs	Alternate Part Numbers Alternate Part Number C1AL36

Product Questions & Answers 4

Product Questions & Answers

got a -16 code 62 setup, is this kit the one with the o-ring and all the bolts or do i need to buy that stuff separate

Question by: Hank B on Sep 22, 2025, 6:35 AM

In the box you get the full split flange kit: (2) flange halves, (4) Grade 8 hex bolts, (4) lock washers, and (1) 90 durometer Buna-N O-ring.

Answer by: Customer Support on Sep 23, 2025, 7:20 PM

what all comes in this kit, and will it handle 6000 PSI without any issues?

Question by: Terry M on Apr 18, 2025, 4:13 PM

You get two flange halves, four grade 8 hex bolts, four lock washers, and a 90 durometer Buna-N O-ring, so everything you need to make the connection is right there in the box. The kit is rated up to 6000 PSI, so high-pressure hydraulic lines are well within its range.

Answer by: Customer Support on Apr 20, 2025, 7:39 AM

trying to swap out a #16 split flange kit, is this the one with the 1.88 flange head?

Question by: Steve M on May 15, 2025, 6:42 AM

You are looking at a Code 62 split flange kit for dash size -16 with a 1.88 inch flange head diameter, so it matches the common “#16” callout for this style.

Answer by: Customer Support on May 17, 2025, 6:17 AM

What all comes in this kit?

Question by: Steve W on Nov 1, 2025, 8:03 PM

This Code 62 split flange kit includes two flange halves, four grade 8 hex bolts, four lock washers, and one 90 durometer Buna-N O-Ring.

Answer by: Customer Support on Nov 2, 2025, 9:26 PM

Similar Products

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	A	D	E	G
16SFXO	1.88	-16	6000	500-600 lb-in	2.25	0.55	0.5	0.94
20SFXO	2.12	-20	6000	750-900 lb-in	2.62	0.62	0.6	1.06
12SFXO	1.63	-12	6000	300-400 lb-in	2	0.47	0.42	0.75
24SFXO	2.5	-24	6000	1400-1600 lb-in	3.12	0.72	0.66	1.19
FF595-16	1.88	-16	6000	500-600 lb-in	2.25	0.55	0.5	0.94
